HELICAL TIE Timber Frame Wall Ties

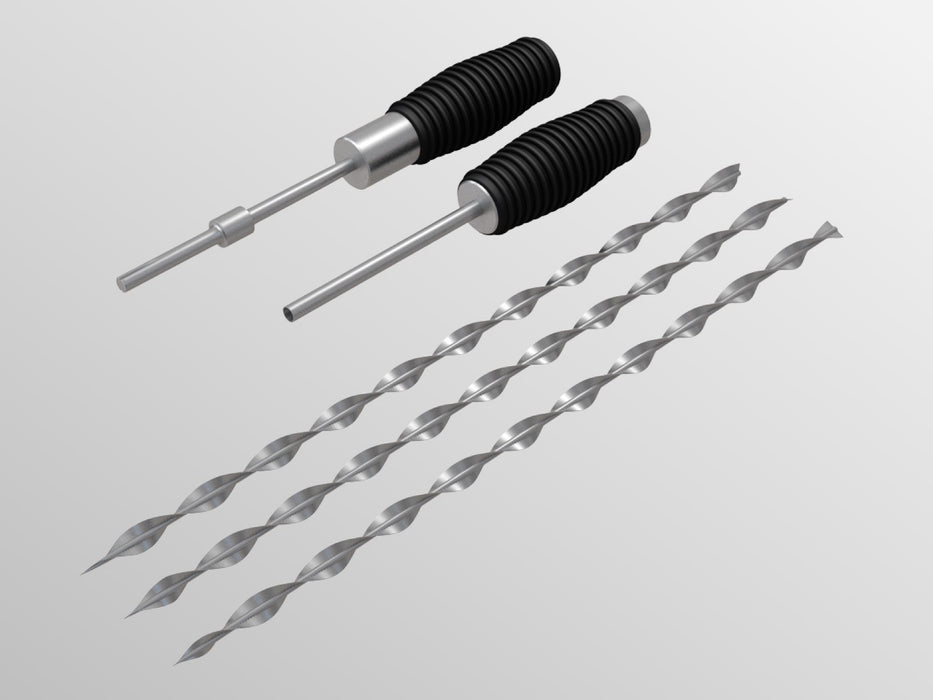

The HELICAL TIE Timber Frame Wall Ties are precision-engineered 4.5mm stainless steel ties designed to securely anchor external masonry to timber frame structures. Ideal for newbuild domestic and small commercial buildings up to four storeys (maximum height 15m), these Type 6 ties are suitable for cavities up to 165mm. Offering excellent flexibility and strength, they accommodate vertical differential movement up to 24mm. Crafted from high-grade 304 stainless steel, HELICAL TIEs provide outstanding durability and corrosion resistance, making them a reliable choice for long-term structural integrity in modern timber frame construction.

Technical Specification

• Data Sheet
• Technical Drawing
• Application: This type of timber frame wall tie is right for domestic and small commercial builds up to four storeys high. They are suitable for buildings with a maximum height of 15m and for flat sites where the basic wind speed is up to 25m/s and altitude is not greater than 150m above sea level.
• Design: This tie has the advantage of being suitable for use where the cavity is up to 165mm. It will accommodate maximum vertical differential movement of 24mm.
• Material: Manufactured from grade 304 stainless steel
• Behaviour in relation to fire: Non combustible (as defined in the national Building Regulations)
• Durability: Excellent corrosion resistance and a service life of not less than 60 years
• Thermal performance: In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
• Compliance: Tested as Type B (sound) and as Type 6 (strength) to BS EN 845-1
