15,000 Litre Ecosure Agricultural Rainwater Harvesting System

The 15,000 Litre Ecosure Agricultural Rainwater Harvesting System is a high-capacity, British-made water management solution designed to help farms, smallholdings and rural businesses reduce water costs and improve sustainability. Manufactured in the UK as part of the Made in Britain campaign, Ecosure tanks are engineered for exceptional durability using premium tank-grade virgin MDPE. Each tank is rotationally moulded in one piece for superior structural strength and comes with integrated lifting eyes for easier installation, even in challenging environments. Compatible with up to 6" pipe fittings, this system is designed for seamless integration into agricultural water networks. Depending on roof size, you can choose between the VF1 Combi filter (up to 450m²) or the Twin Filter (up to 800m²), both offering highly efficient filtration with minimal maintenance. Optional mains water backup ensures you never run out of water during dry periods, while the HydroForce Series 3 external tap system provides consistent, pressurised water—ideal for washdown areas, equipment cleaning, livestock care and irrigation. With a huge 15,000L capacity and a 10-year manufacturing guarantee, this system offers long-term reliability and outstanding value for agricultural operations.

Technical Specification

• UK-made agricultural rainwater harvesting system using virgin MDPE
• Rotationally moulded, single-piece tank for maximum strength
• Integrated lifting eyes for safe and easy installation
• 10-year guarantee against manufacturing defects
• Compatible with up to 6" pipe fittings for large-scale water management
• VF1 Combi filter suitable for roof areas up to 450m²

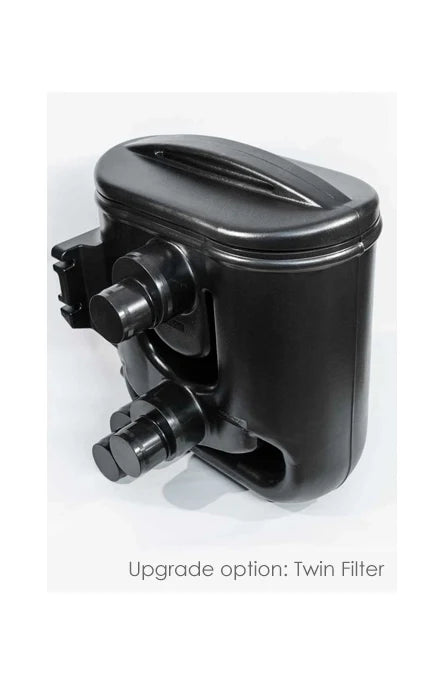

• Twin Filter suitable for roof areas up to 800m²
• High-efficiency, two-step filtration with continuous debris cleaning
• Optional Partfill Valve for automatic mains water backup
• External tap system powered by HydroForce Series 3 pump
• Pump output: max head 35m, nominal pressure 3.5 bar, max suction 3m
• Ideal for agricultural washdown, irrigation, jet washing and equipment cleaning
• 15,000 Litre Water Tank Dimensions
• Height: 2900mm
• Diameter: 2700mm
• Inlet: Up to 6"
• Outlet: Up to 6"
• Access: 600mm
• Weight: 300kg
• Capacity: 15,000 litres / 3300 gallons
• Material: MDPE (Medium Density Polyethylene)
