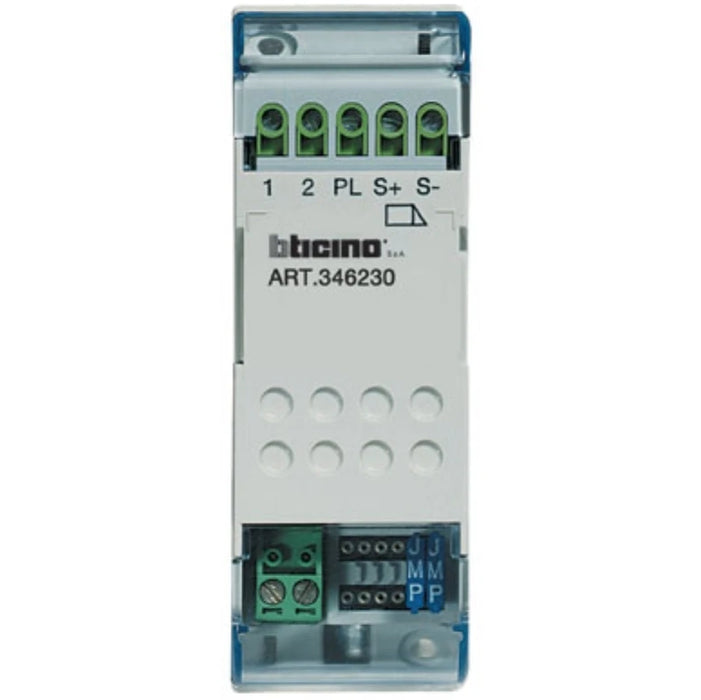

2 Din Door Lock Actuator

The 2 DIN Door Lock Actuator is a compact and reliable bus system-compatible switch actuator designed for activating electric door locks in residential or commercial automation systems. Housed in a 2-module DIN rail mount, this unit is powered by the SCS BUS (18–27 V DC) and allows seamless integration into access control setups.

Engineered for efficiency and simplicity, the actuator supports physical configurator setup, and its 6A rated current enables the operation of locks and compatible components with maximum switching power up to 144W. With a bus connection included and IP20 protection, it’s ideal for mounting within electrical distribution boards in secure indoor environments.

Technical Specifications

• Download Product Technical Data Sheet

• Product Type: Door Lock Actuator

• System Type: Bus System (SCS BUS)

• Rated Operating Voltage: 18–27 V DC

• Standby Current Consumption: 10 mA

• Maximum Operating Absorption: 300 mA

• Rated Current: 6 A

• Maximum Switching Power: 144 W

• Number of Switching Contacts: 1

• Digital Inputs: 1

• Mounting Method: DIN Rail Adapter (DRA)

• Housing Size: 2 Modular DIN Units

• Degree of Protection: IP20 (Indoor Use Only)

• Operating Temperature: 5°C to 40°C

• Bus Connection: Included

• Bus System Compatibility:

  • KNX: No

  • KNX Radio / Powernet / LON: No

  • Radio Frequent (Other): Yes

• Physical Configuration Required: Yes

• LED Indication: No

• C-Load Compatibility: Yes

• Local Manual Operation: No

• Modular Expandability: No

• Different Phases Connectable: No

This 2 DIN actuator is the ideal choice for system integrators and installers looking for a reliable, space-efficient, and bus-compatible solution for electric door lock control within smart building infrastructures.
