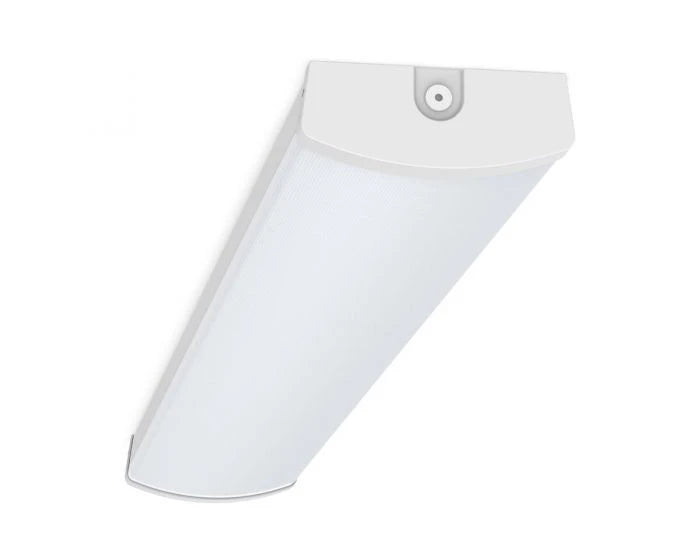

20W - 23W - 26W - 30W 2822-3383-3984-4500Lm LED 1200mm Non Dimmable Emergency Surface Linear

The LED Surface Linear Batten 1200mm delivers adaptable, energy-efficient lighting ideal for commercial environments such as offices, schools, and hotels. Featuring a wattage switch allowing selection between 20W, 23W, 26W, and 30W at installation, this luminaire provides flexibility to meet varying lighting levels on-site.

With an impressive efficacy of up to 150 lumens per watt, it produces bright, uniform illumination ranging from 2822 to 4500 lumens. Designed for surface mounting or suspension/wall mounting, it suits a wide array of applications. Its IP44 rating ensures durability and suitability for environments with moisture exposure. Quick and hassle-free installation is enabled via a push-fit terminal. The product also includes an emergency lighting function, providing added safety and compliance in critical spaces.

Technical Specification

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Wattage switchable: 20W, 23W, 26W, 30W

• Luminous flux range: 2822 – 4500 lumens

• Colour temperature: 4000 K (neutral white)

• Luminaire efficacy: up to 150 lm/W

• Length: 1200 mm

• Width: 207 mm

• Height/Depth: 80 mm

• Unified Glare Rating (UGR): 22

• Power factor: 0.9

• Rated lifetime: 70,000 hours (L70/B50 at 25 °C)

• Maximum system power: 30 W

• Voltage: 220 – 240 V

• IP rating: IP44 (suitable for damp locations)

• Light source included: Yes

• Dimming: Compatible with DALI only

• Emergency lighting: Yes (bolt-on emergency conversion packs available)

• Installation: Surface mount, suspended, or wall mount

• Compatible with smart home systems: No (not compatible with Alexa, Google Assistant, Apple HomeKit)

• Additional features: Push-fit terminal for easy installation, CSP Collingwood lumen output switch for lux level adjustment

This versatile and efficient LED Surface Linear Batten combines flexibility, durability, and uniform lighting, making it an excellent choice for your commercial lighting projects requiring both standard and emergency illumination.
