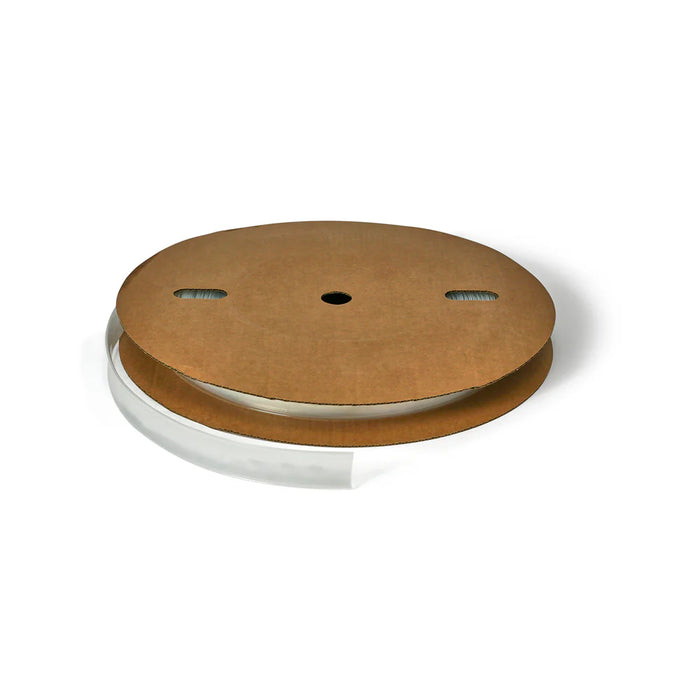

3:1 Clear Adhesive-Lined Waterproof Heat Shrink Tubing
excl. VAT
💳 0% APR Finance Available*
Our 3:1 Clear Adhesive-Lined Waterproof Heat Shrink Tubing offers reliable insulation, secure cable bundling and exceptional protection against water, dust and environmental elements. Made from high-quality polyolefin with an internal adhesive lining, this dual-wall tubing delivers a strong, durable seal once shrunk. Its clear finish allows easy visual inspection of wires and connections, making it ideal for wire harnesses, machinery, automotive and general manufacturing applications. Datasheets are available upon request.
Technical Specification
• Material: Polyolefin
• Shrink Ratio: 3:1
• Lining: Adhesive-lined dual wall
• Working Temperature: -55°C to +125°C
• Shrink Temperature: 90°C
• Pre-shrink Diameter Range: 3mm – 38.1mm
• Post-shrink Diameter Range: 1mm – 12.7mm
• Pre-shrink Lay-flat Width: 5mm – 59.8mm
• Colour: Clear
• Reel Length Options: 200m – 20m
• Dielectric Voltage Withstand: 2500V for 60 seconds (no breakdown)
• Certifications: RoHS Compliant, Zero Halogen
• Important Note: Sizes 9.5mm and below are supplied round, while 12.7mm and above are supplied flat.
