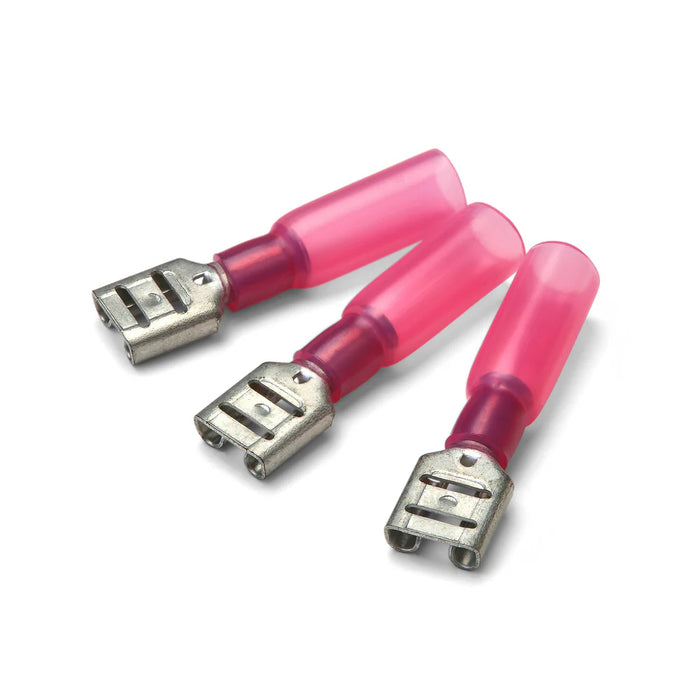

4.8 x 0.8mm Red Heatshrink Female Push-On Terminal - Pack of 100

The 4.8 x 0.8mm Red Heatshrink Female Push-On Terminal – Pack of 100 provides a secure, waterproof, and durable wiring solution suitable for automotive, marine, and general electrical applications. These high-quality part-insulated terminals feature adhesive-lined heatshrink insulation that forms a strong moisture-resistant seal, protecting against corrosion, vibration, and environmental exposure. Ideal for electrical equipment, auto electrical repairs, and outdoor installations, they ensure excellent conductivity and long-lasting performance. Datasheets are available upon request.

Technical Specification

• Terminal Type: Part-Insulated Female Adhesive Lined Heatshrink Disconnect
• Insulation Colour: Red
• Wire Size: 0.5mm² – 1.5mm²
• Tab Size: 4.8mm x 0.8mm
• Terminal Material: Brass with Electro Tin Plating (Polyolefin)
• Pack Size: 100pcs
• Maximum Operating Temperature: 125°C
• Maximum Electrical Rating: 600V Max
• Minimum Shrink Temperature: 120°C
• Shrink Ratio: 3:1
• RoHS Compliant
• Halogen Free
• REACH Compliant
