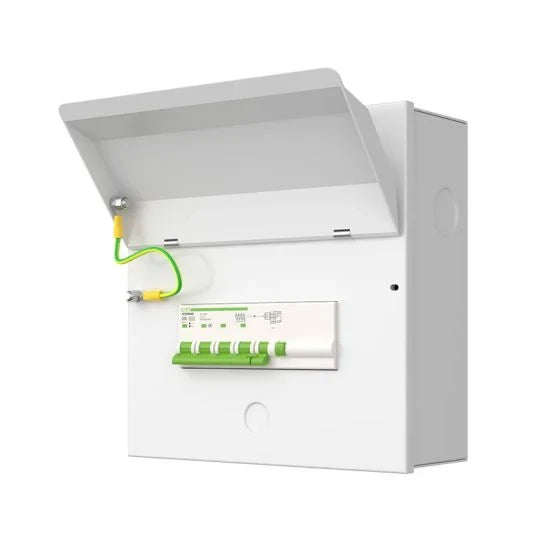

40A Three Phase EV Consumer Unit with Type B RCD / MCB

The 40A Three Phase EV Consumer Unit by Rolec is the perfect solution for safe and efficient installation of three-phase electric vehicle charging points, especially those requiring PME fault detection. Designed with a robust powder-coated steel enclosure and IP40 protection, this consumer unit offers comprehensive protection with a built-in 40A 4-pole MCB and a 63A 30mA 4-pole Type B RCD. It safeguards against short circuits, overcurrent, and both AC and DC earth leakage faults, ensuring optimal safety for your EV charging system. Fully compliant with BS7671 18th edition regulations and CE/UKCA certified, this unit is engineered for durability with IK10 impact resistance and platinum range switchgear—making it an ideal choice for both domestic and commercial EV chargepoint installations.

Technical Specification

• Download Product Technical Data Sheet

• Suitable for installation of a 32A Three Phase EV charger

• 8-modular, IP40 rated powder-coated metal consumer unit

• Integrated 40A 4P 6KA MCB & 63A 30mA 4P Type B RCD for AC overload and AC/DC fault current protection

• Compliant with BS7671 18th edition wiring regulations

• Compatible with all types of EV chargepoints

• IK10 impact resistant design for enhanced durability

• Platinum range switchgear for superior performance

• CE/UKCA certified

• Housing material: Steel (grey finish)

• Dimensions: Width 240 mm, Height 240 mm, Depth 105 mm

• Main switch rated current: 40 A

• Number of phases: 3
