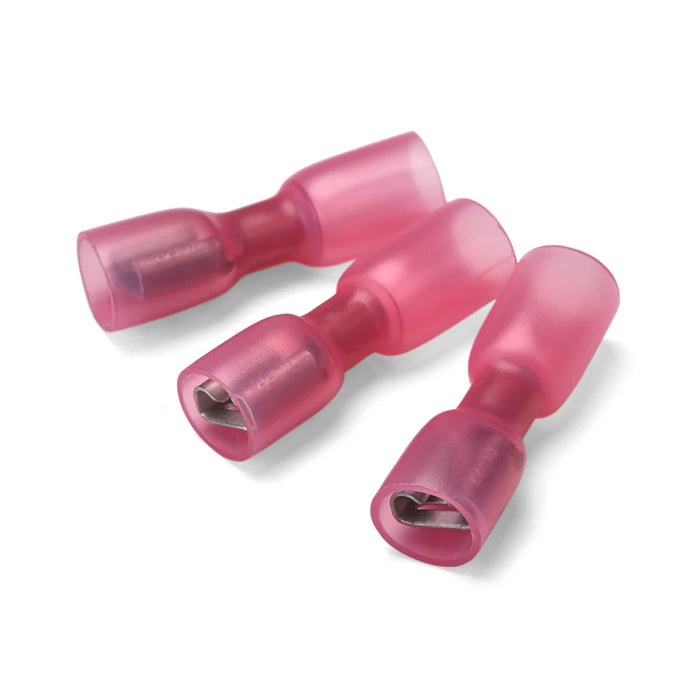

6.3 x 0.8mm Red Fully Insulated Heatshrink Female Push-On Terminal - Pack of 100
Original price
£16.04
-
Original price
£16.04
Original price
£16.04
£16.04
-
£16.04
Current price
£16.04
excl. VAT
💳 0% APR Finance Available*
The 6.3 x 0.8mm Red Fully Insulated Heatshrink Female Push-On Terminal – Pack of 100 offers a strong, waterproof, and highly reliable connection solution for automotive, marine, and general electrical applications. Featuring adhesive-lined heatshrink insulation, these high-quality terminals create a secure moisture-resistant seal, providing excellent protection against corrosion, vibration, and harsh environmental conditions. Ideal for electrical equipment, vehicle wiring repairs, and outdoor installations, they ensure consistent conductivity and long-lasting durability. Datasheets are available upon request.
Technical Specification
- Terminal Type: Fully-Insulated Female Adhesive Lined Heatshrink Disconnect
- Insulation Colour: Red
- Wire Size: 0.5mm² – 1.5mm²
- Tab Size: 6.3mm x 0.8mm
- Terminal Material: Brass with Electro Tin Plating (Polyolefin)
- Pack Size: 100pcs
- Maximum Operating Temperature: 125°C
- Maximum Electrical Rating: 600V Max
- Minimum Shrink Temperature: 120°C
- Shrink Ratio: 3:1
- RoHS Compliant
- Halogen Free
- REACH Compliant
