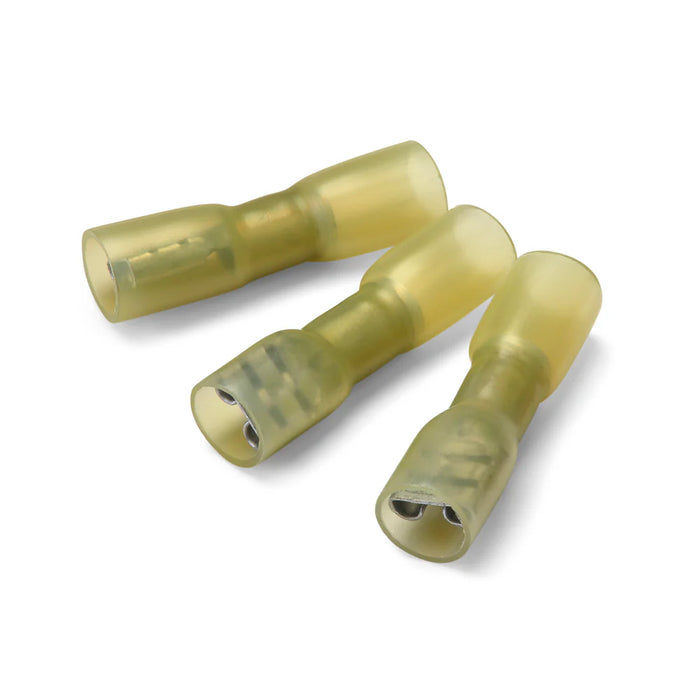

6.3 x 0.8mm Yellow Heatshrink Fully Insulated Female Push-On Terminal - Pack of 100

The 6.3 x 0.8mm Yellow Heatshrink Fully Insulated Female Push-On Terminal – Pack of 100 offers a strong, waterproof, and reliable connection solution for demanding electrical applications. Designed with adhesive-lined heatshrink insulation, these high-quality terminals create a secure moisture-resistant seal, providing excellent protection against corrosion, vibration, and harsh environmental conditions. Ideal for automotive wiring, electrical equipment, marine installations, and outdoor repairs, they ensure consistent conductivity and long-lasting performance. Datasheets are available upon request.

Technical Specification

• Terminal Type: Fully-Insulated Female Adhesive Lined Heatshrink Disconnect
• Insulation Colour: Yellow
• Wire Size: 4mm² – 6mm²
• Tab Size: 6.3mm x 0.8mm
• Terminal Material: Brass with Electro Tin Plating (Polyolefin)
• Pack Size: 100pcs
• Maximum Operating Temperature: 125°C
• Maximum Electrical Rating: 600V Max
• Minimum Shrink Temperature: 120°C
• Shrink Ratio: 3:1
• RoHS Compliant
• Halogen Free
• REACH Compliant
