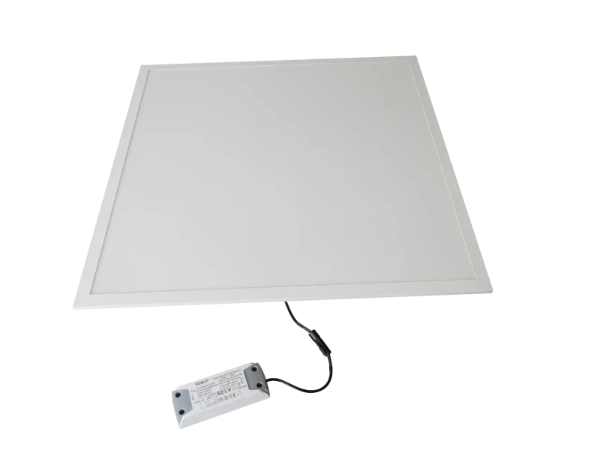

600X600Mm White 4000K Dallas 40W Led Backlit Panel
excl. VAT
💳 0% APR Finance Available*
The Dallas 40W LED Backlit Panel is a high-performance replacement for traditional 4x18W T8 lay-in modular fluorescent lights, designed to fit standard ceiling grids of 15mm and 24mm. With a sleek 600x600mm size and crisp 4000K color temperature, this panel is perfect for illuminating offices, shops, reception areas, restaurants, hotels, schools, and hospitals. Featuring a low glare rating of 22 and a TP(b) rated diffuser compliant with BS2782.0:2011 Method 508A, the Dallas panel delivers comfortable, eye-friendly lighting ideal for commercial and professional environments. It boasts an impressive 50,000-hour lifespan—up to five times longer than standard fluorescents—and a high efficacy of 104 lumens per watt, ensuring energy-efficient, cost-effective lighting. Compatible with PIR, microwave, or photocell switching, this panel offers versatility and convenience for modern lighting control.
Technical Specification
-
Download Product Technical Data Sheet
-
Dimensions: 595 x 595 x 24 mm
-
Power Consumption: 39.2 W
-
Color Temperature: 4000 K (Neutral White)
-
Luminous Efficacy: 104 lm/W
-
Unified Glare Rating (UGR): 22 (Low Glare)
-
Diffuser: TP(b) rated, BS2782.0:2011 Method 508A compliant
-
Rated Lifetime: 50,000 hours (L70/B50 at 25°C)
-
Power Factor: 0.97
-
Nominal Voltage: 220 - 240 V
-
Operating Ambient Temperature: -20°C to +40°C
-
Mounting: Suitable for suspended mounting in standard ceiling grids (15mm and 24mm)
-
Control Compatibility: Suitable for switching by PIR, microwave, or photocell sensors
-
Light Source: Integrated LED included
-
Certifications: Complies with relevant safety and performance standards
Upgrade your commercial or professional space with the Dallas 40W LED Backlit Panel, combining energy efficiency, longevity, and superior lighting quality for a comfortable and productive environment.
