Armoured Cable Gland Pack Indoor BW50S C/W Locknut, Earth Tag+PVC Shroud (KIT1)
excl. VAT
💳 0% APR Finance Available*

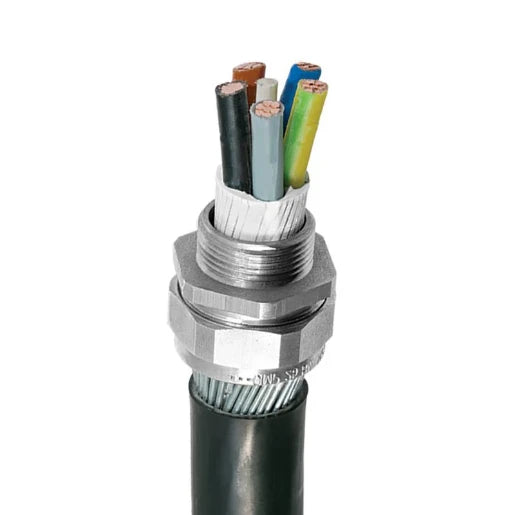

This Cable Gland Kit is designed for secure and reliable termination of steel wire armoured (SWA) cables, providing an environmental seal on the cable's outer sheath. Suitable for cables with a 50.1mm diameter, the kit includes a brass gland, steel locknut, brass earth tag, and PVC shroud, ensuring both mechanical retention and electrical continuity through armour wire termination.
Tested to meet the BS 6121 pt.1:1989 standard and conforming to BSEN 50262, this kit guarantees compliance with the highest industry standards. It is also ISO 9001 certified, ensuring consistent quality, and CE marked for compliance with low voltage directive 72/73/EEC.
The gland is ideal for outdoor use, offering robust protection with an operating temperature range of -60°C to 200°C, making it suitable for a wide range of applications, including harsh environmental conditions.
Key Features
- Brass gland, steel locknut, brass earth tag, and PVC shroud
- Conforms to BSEN 50262 and tested to BS 6121 pt.1:1989
- ISO 9001 certified
- Provides mechanical cable retention and electrical continuity via armour wire termination
- CE marked for low voltage directive compliance
- Operating Temperature: -60°C to 200°C
Technical Specifications
Download Product Technical Data Sheet
- Colour: Black
- Model: Straight
- Thread Type: Metric
- Material: Metal (Brass and Steel components)
- Nominal Thread Size: 50mm
- Suitable for Cable Outer Diameter: 50.1mm
- Separable Screw Gland: Yescable termination
- Locknut Included: Yes
