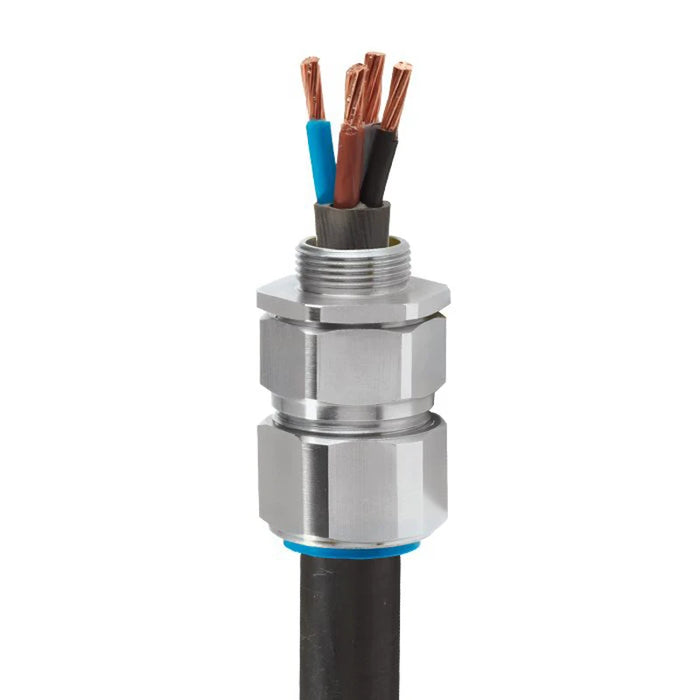

Armoured Cable Gland Pack Outdoor CW63 C/W Locknut, Earth Tag+PVC Shroud (KIT1)

This cable gland kit includes a brass gland, steel locknut, brass earth tag, and PVC shroud, making it ideal for use with all types of SWA (Steel Wire Armoured) cables. It provides an environmental seal on the cable's outer sheath, making it suitable for outdoor applications. The kit ensures mechanical retention and electrical continuity through the armour wire termination.

The cable gland has been tested to BS 6121 pt.1:1989, conforms to BSEN 50262, and is CE marked in compliance with the Low Voltage Directive 72/73/EEC. It supports direct and remote installation and operates within a wide temperature range of -60°C to 200°C.

Technical Specifications

Download Product Technical Data Sheet

• Model: Straight
• Material: Brass (Metal)
• Colour: Black
• Thread Type: Metric
• Nominal Thread Size (Metric/PG): 63
• Suitable for Cable Outer Diameter: 54.6 - 65.9 mm
• Locknut Included: Yes
