Batten Single 4000K Opal Diffuser Standard

The Collingwood Lighting BT5SS40 Batten Single features a sleek matt white steel housing with an opal diffuser, delivering bright and consistent 4000K neutral white light. Designed for energy efficiency and durability, this 32W LED batten produces 4160 lumens at up to 130 lm/W, making it an excellent lighting solution for sheds, garages, warehouses, and other utility spaces.

Equipped with multiple fixing points and flexible wiring options, this batten ensures easy installation. It also includes built-in microwave sensor functionality with on-off and dusk-to-dawn features, offering significant energy savings by automatically controlling light operation based on presence and ambient light levels. The built-in self-test emergency function provides safety with a lumen output of 250lm during emergency mode.

Technical Specification

• Download Product Technical Data Sheet

• Length: 1524 mm

• Width: 76 mm

• Height/Depth: 70 mm

• Maximum system power: 32 W

• Light source included: Yes

• Colour temperature: 4000 K (neutral white)

• Lumen output: 4160 lm

• Power factor: 0.95

• Rated life time L70/B50 at 25 °C: 54,000 hours

• Multiple fixing points and wiring options for flexible installation

• Microwave built-in sensor with On-Off and dusk-dawn functions

• Built-in self-test emergency mode with 250 lm output

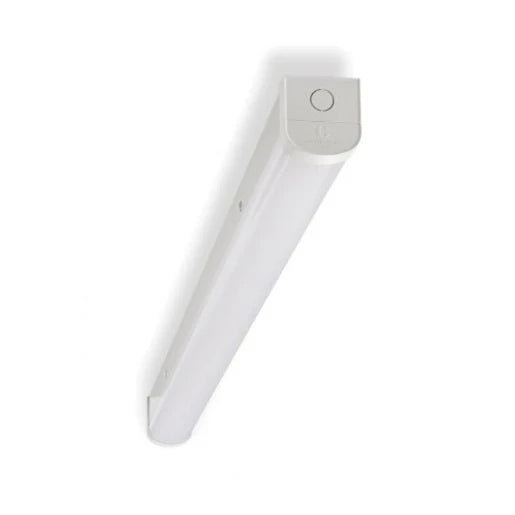

• Housing: Matt white steel with opal diffuser

• Suitable for sheds, garages, warehouses, and utility areas

• Control gear included

This LED batten is an ideal replacement for traditional fluorescent fittings, combining energy savings, ease of installation, and reliable lighting performance for commercial and industrial applications.
