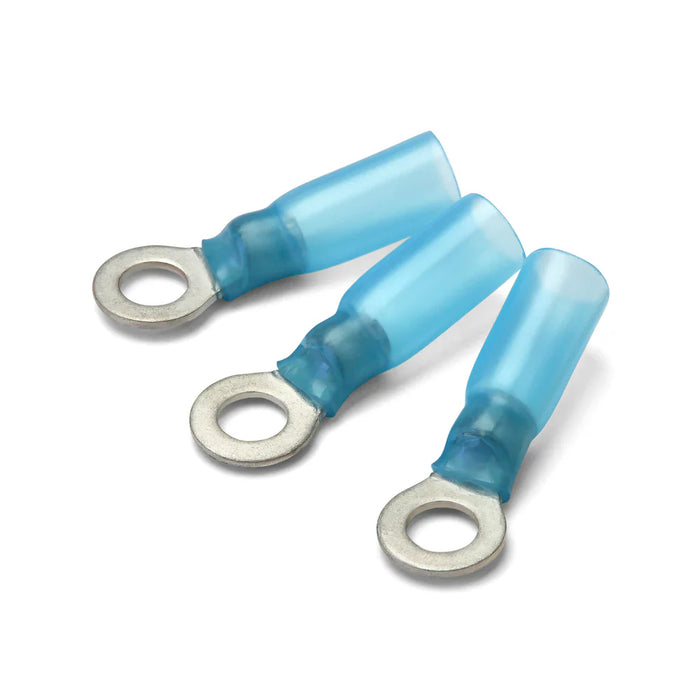

Blue Heat Shrink Ring Terminal - Insulated - Pack of 100
Original price
£10.14
-
Original price
£16.57
Original price
£10.14
£10.14
-
£16.57
Current price
£10.14
excl. VAT
💳 0% APR Finance Available*
The Blue Heat Shrink Ring Terminal – Insulated – Pack of 100 provides a waterproof, durable, and highly reliable wiring solution for automotive, marine, and electrical installations. These high-quality crimp terminals feature adhesive-lined heat shrink insulation that forms a secure moisture-resistant seal, protecting against corrosion, vibration, and harsh environmental conditions. Ideal for electrical equipment, vehicle wiring repairs, and outdoor applications, they deliver excellent conductivity and long-lasting performance. Datasheets are available upon request.
Technical Specification
- Terminal Type: Adhesive Lined Heat Shrink Ring Terminal
- Insulation Colour: Blue
- Wire Size: 1.5mm² – 2.5mm²
- Stud Sizes Available: 4.3mm, 5.3mm, 6.5mm, 8.5mm, 10.5mm, 12.5mm
- Terminal Material: Copper with Electro Tin Plating (Polyolefin)
- Pack Size: 100pcs
- Maximum Operating Temperature: 125°C
- Maximum Electrical Rating: 600V Max
- Minimum Shrink Temperature: 120°C
- Shrink Ratio: 3:1
- RoHS Compliant
- Halogen Free
- REACH Compliant
