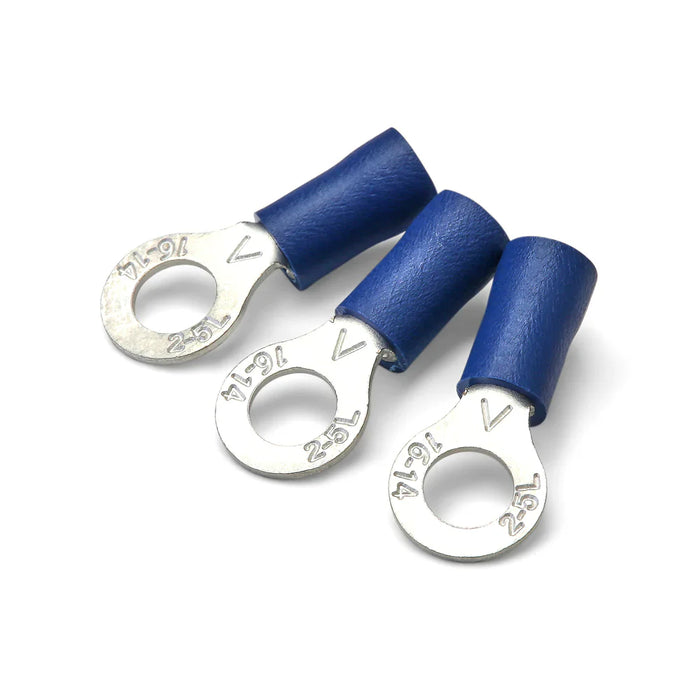

Blue Ring Terminal - Insulated - Pack of 100
excl. VAT
💳 0% APR Finance Available*
Our Blue Ring Terminal – Insulated (Pack of 100) offers a reliable and high-performance connection solution for electrical and automotive applications. Manufactured from copper with electro-tin plating, these insulated blue crimp ring terminals provide excellent conductivity and long-lasting durability. Ideal for electrical manufacturing, maintenance, and wire harness assemblies, they ensure secure fastening and optimal current flow. Technical datasheets are available upon request.
Technical Specification
• Type: PVC Insulated Ring Terminal
• Insulation Colour: Blue
• Wire Size: 1.5mm² – 2.5mm²
• Stud Size Options: 3.2mm, 3.7mm, 4.3mm, 5.3mm, 6.5mm, 8.4mm, 10.5mm, 13mm
• Terminal Material: Copper with Electro-Tin Plating (PVC)
• Pack Size: 100pcs
• Maximum Operating Temperature: 75°C
• Maximum Electrical Rating: 600V Max
• RoHS Compliant
• Halogen Free
• REACH Compliant
• Size Breakdown:
3mm – Wire Size 1.5mm²–2.5mm², Stud Size 3.2mm
3.5mm – Wire Size 1.5mm²–2.5mm², Stud Size 3.7mm
4mm – Wire Size 1.5mm²–2.5mm², Stud Size 4.3mm
5mm – Wire Size 1.5mm²–2.5mm², Stud Size 5.3mm
6mm – Wire Size 1.5mm²–2.5mm², Stud Size 6.5mm
8mm – Wire Size 1.5mm²–2.5mm², Stud Size 8.4mm
10mm – Wire Size 1.5mm²–2.5mm², Stud Size 10.5mm
12mm – Wire Size 1.5mm²–2.5mm², Stud Size 13mm
