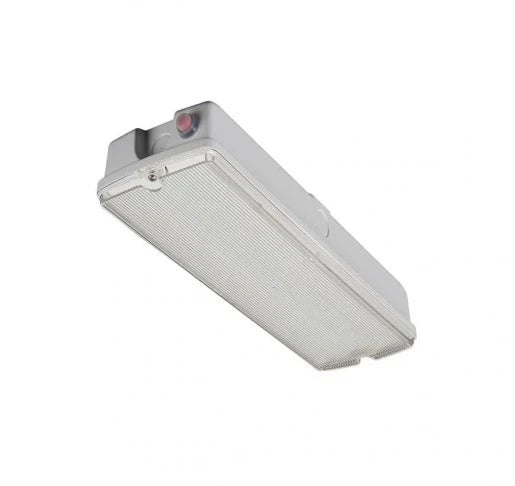

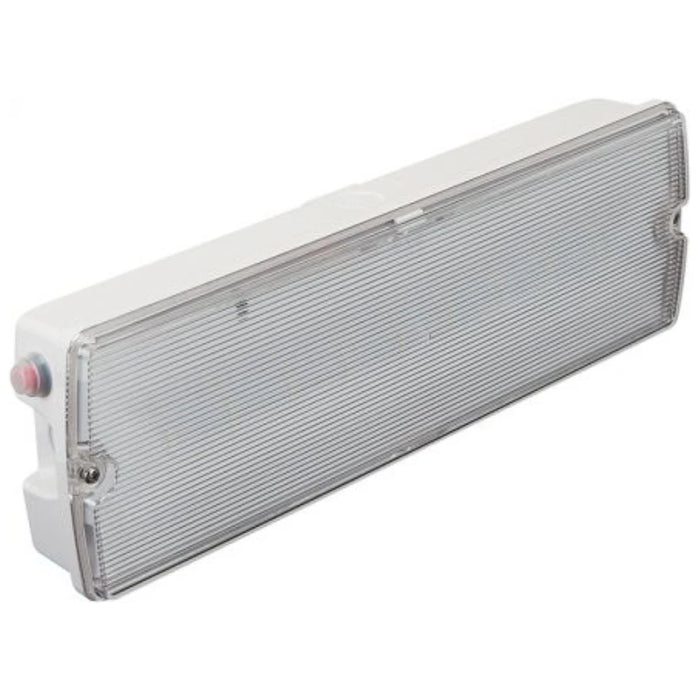

Bulkhead Emergency Legend Polycarbonate/Abs Self Test

The Collingwood Bulkhead Emergency Legend with Self-Test functionality is a high-performance, LED emergency luminaire designed for use in open areas, escape routes, and general emergency illumination. Engineered for durability and efficiency, this bulkhead features advanced LED and battery technology, ensuring reliable operation and a long service life.

Built with a robust polycarbonate/ABS housing and lens, the luminaire offers IP65 and IK08 ratings, making it suitable for demanding environments. The integrated self-test system simplifies maintenance and ensures compliance with safety standards, while the 18m viewing distance and interchangeable legends enhance visibility in critical areas. Flexible installation options include 3x M20 knockouts and BESA box fixing points.

Technical Specifications

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Functionality: Maintained or Non-maintained (via push-fit terminals)

• Test Type: Manual or Self-Test versions available

• Battery: Long-life Lithium battery

• Viewing Distance: 18 meters

• Maximum Power Consumption: 3W

• Light Source: Included, LED (6500K)

• Voltage: 220 - 240V

• Construction: Polycarbonate/ABS housing

• Mounting Options: Multiple, including BESA and 3x M20 knockouts

• Dimensions:

  • Length: 352 mm

  • Width: 110 mm

  • Height/Depth: 56 mm

Compliance: ISO 3864-1 | ICEL Member Certified

This emergency bulkhead is the ideal lighting solution for commercial buildings, schools, public venues, and anywhere safe, visible exit signage is required.
