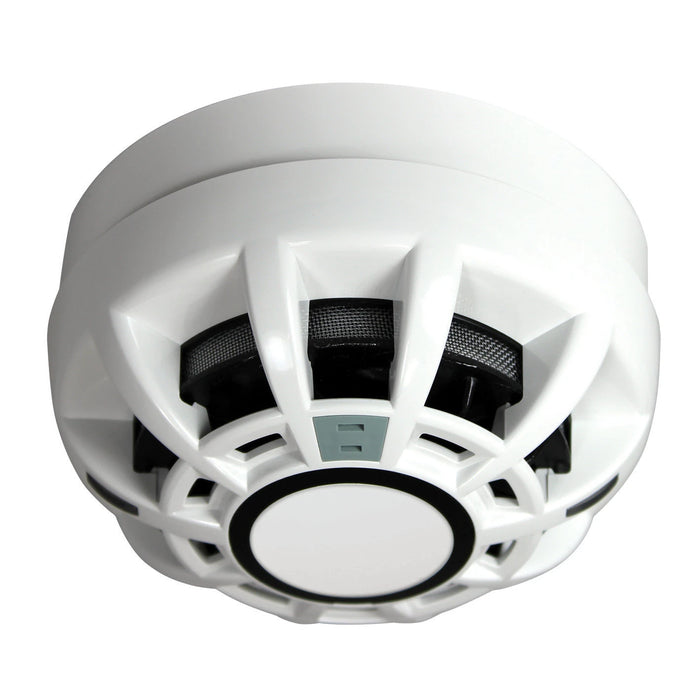

Cast Pro Optical Heat Co Sensor Tone Sounder

The Cast Pro Optical Heat CO Sensor Tone Sounder is a cutting-edge multisensor fire detection device combining carbon monoxide, smoke, and heat sensing technology with a powerful 92 dB(A) tone alarm sounder. Designed for maximum safety and reliability, this sensor is certified to multiple EN54 standards (3, 5, 7, 17, 29 & 31), making it ideal for demanding fire safety applications. Fully compatible with C-TEC’s ZFP touchscreen-controlled CAST protocol addressable fire panels, it ensures seamless integration and enhanced control.

Featuring the innovative MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms, this device offers superior detection accuracy and false alarm resistance. It includes an onboard short circuit loop isolator and ultra-bright LED indicators, providing clear status visibility. With multiple detection modes and adjustable sensitivities for different times of the day, the Cast Pro sensor delivers intelligent fire monitoring tailored to your environment.

Technical Specification

• Multisensor detection: carbon monoxide, smoke, and heat

• Powerful 92 dB(A) tone alarm sounder

• Certified to EN54 parts 3, 5, 7, 17, 29 & 31

• Compatible with C-TEC ZFP CAST protocol addressable fire panels

• Advanced MASC™ chamber and AFFIRM™ detection algorithms

• Onboard short circuit loop isolator for enhanced circuit reliability

• Two ultra-bright red LED indicating strips (8mm x 2mm) for clear visual status

• Multiple detection modes and adjustable sensitivity settings

• Maximum alarm current: 5.4 mA (at max volume)

• Typical quiescent current: 630 µA @ 40V DC

• Compatible with C-TEC CA408 CAST base with integrated locking and ID tag

The Cast Pro Optical Heat CO Sensor Tone Sounder is a versatile and reliable solution for advanced fire detection, suitable for commercial, industrial, and residential applications where safety cannot be compromised.
