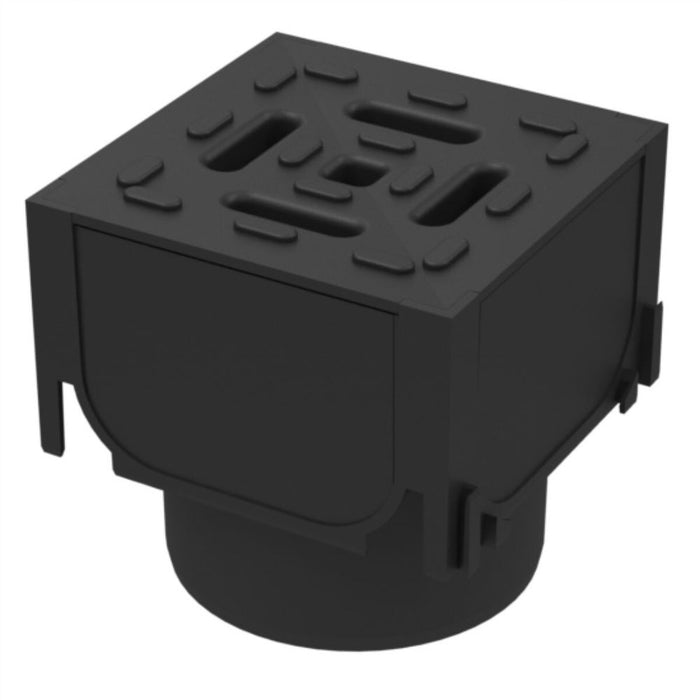

Channel Drain Corner Block

The Channel Drain Corner Block is a versatile connector that allows you to join up to four HexDrain channel drains at 90° angles, T-junctions, or cross intersections. Designed for quick integration, it can accept inputs from any of its four sides, enabling flexible layout configurations in domestic drainage systems. Made from durable polypropylene, this component is ideal for managing surface water in patios, driveways, and paved areas.

Key Features

• Connects up to 4 channel drains at once – perfect for corners, T-junctions, and crosses
• Universal four-way inlet design offers maximum installation flexibility
• Compatible with FloPlast and ACO HexDrain systems
• Quick-fit push connection for easy installation
• Ideal for domestic applications like patios, pathways, and driveways
• Durable polypropylene construction – lightweight, weatherproof, and long-lasting
• Helps maintain a clean and continuous drainage run


Technical Specifications

• Material: Durable polypropylene
• Width: 125 mm
• Length: 125 mm
• Height: 193 mm
• Weight: 0.4 kg
• Channel Compatibility: FloPlast and ACO HexDrain systems
• Input Capacity: Accepts connections from up to 4 sides
• Application: Above-ground surface water drainage
• Installation Method: Clip-in / push-fit connection
• Use Case: For corners, T-sections, or 4-way channel intersections
