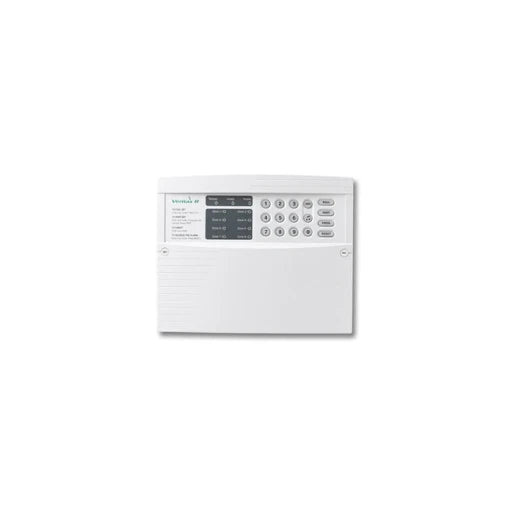

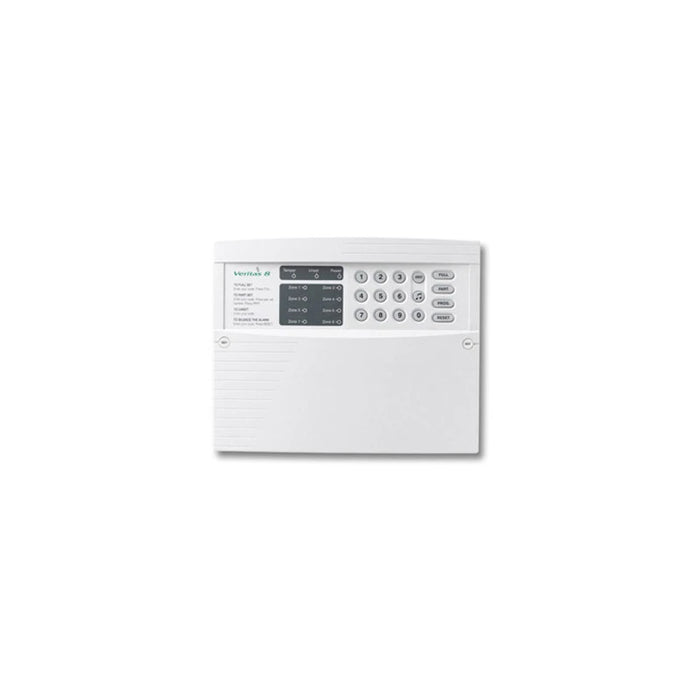

Control Panel 8 Zone 1A 230/115V Programmable White
excl. VAT
💳 0% APR Finance Available*
The 8 Zone Control Panel offers a robust, programmable security solution designed for both fire and security system applications. Featuring 8 fully programmable zones plus tamper detection, this control panel delivers flexible, reliable protection tailored to your specific needs. It includes 8 date-programmable service timers and supports 2 programmable part set suites, enhancing operational control and system customization.
Designed for ease of use, the panel offers a single-button quick set option and latching walk test modes for efficient system management. It also accepts up to 6 backlit LED remote keypads, providing convenient access and control throughout your property. Additional features include a keypad PA option for quick user actions and a key switch facility for secure manual operation.
Compliant with EN 50131 Grade 1 standards, this surface-mounted panel ensures high-level security and safety in any installation.
Technical Specification
-
Download Product Technical Data Sheet
- 8 fully programmable zones with tamper detection for comprehensive security
-
Single button quick set option for fast arming/disarming
-
8 service timers, date programmable, for scheduled maintenance
-
Latching walk test modes for easy system testing
-
2 programmable part set suites for versatile security configurations
-
Soak test suite for reliable system diagnostics
-
Accepts up to 6 backlit LED remote keypads for flexible user control
-
Keypad PA option (press 3 & 9 together) for quick access functions
-
Key switch facility for manual control
-
EN 50131 Grade 1 control station for fire and security systems
-
Surface mounting for straightforward installation
-
Dimensions: Height 185 mm, Width 246 mm, Depth 55 mm
-
White color with LED indication (no LCD or touch panel)
Perfect for residential and commercial properties requiring dependable, programmable security, this control panel ensures peace of mind with advanced features and compliance with top security standards.
