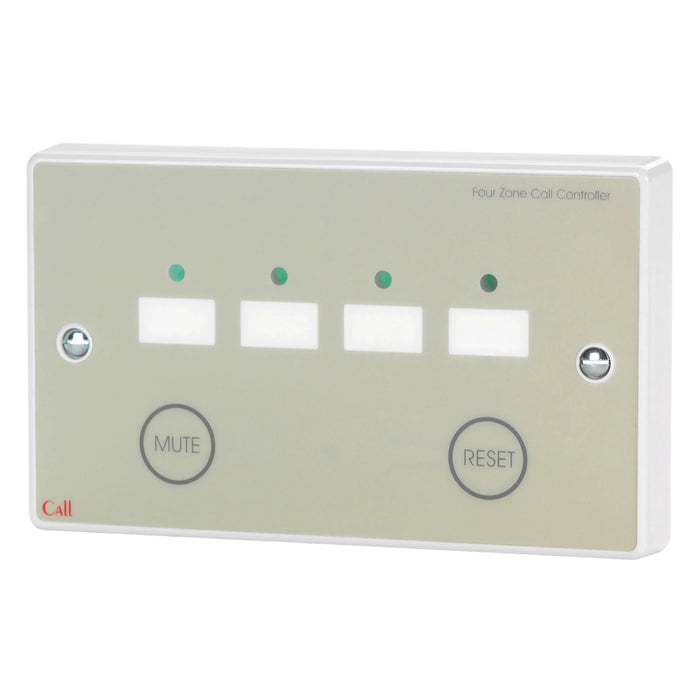

Controller Call 4 Zone No Power Supply Unit

The 4 Zone Call Controller is a versatile and efficient emergency call management unit designed to support up to four separate zones. Featuring dedicated RESET and MUTE buttons along with four zonal alarm LEDs, it offers clear status monitoring and control. This controller requires a separate 12V 250mA power supply unit (NC930) for operation and supports the connection of up to two controllers per PSU, allowing the creation of a mini-call system with up to eight zones. Designed for easy installation, it mounts neatly onto a standard 25mm UK double gang back box, making it ideal for centralized fire alarm or emergency call systems.

Technical Specification

• Download Product Technical Data Sheet

• Number of Zones: 4 zones supported for effective emergency management

• Power Supply: Requires separate NC930 12V 250mA PSU (not included)

• Controls: RESET and MUTE buttons for alarm management

• Indicators: Four zonal alarm LEDs for clear status display

• Outputs: Two open collector outputs (Emergency and Aux Out)

• Expandability: Connect up to two NC944 controllers per NC930 PSU for up to 8 zones

• Mounting: Fits standard 25mm UK double gang back box

• Dimensions: Width 146 mm, Height 87 mm, Depth 21 mm

• Operating Voltage: 12V DC

• Current Consumption: 250 mA

• Connectivity: No radio connection or external bus interface
