Diode Base For Series 60/65 Detectors

The Diode Base for Series 60/65 Detectors is specially designed for use with conventional fire alarm systems where manual call points and detector bases share the same circuit. Featuring a Schottky diode on the "L1 IN" and "L1 OUT" terminals, this diode base ensures proper functionality and compatibility with control equipment. Its secure detector locking mechanism and one-way fit make installation simple and reliable, while the built-in earth connector enhances safety. The base continues to operate even if detectors are removed without authorization, providing uninterrupted protection.

Technical Specification

Download Product Technical Data Sheet

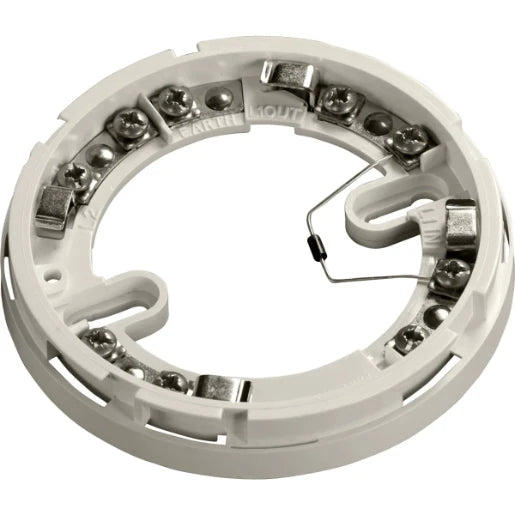

• Fitted with Schottky diode on "L1 IN" and "L1 OUT" wiring terminals
• Compatible only with specific control equipment
• Secure detector locking mechanism for safety
• One-way fit design for easy and correct installation
• Simple and straightforward wiring process
• Includes earth connector for grounding
• Maintains operation during unauthorized detector removal
