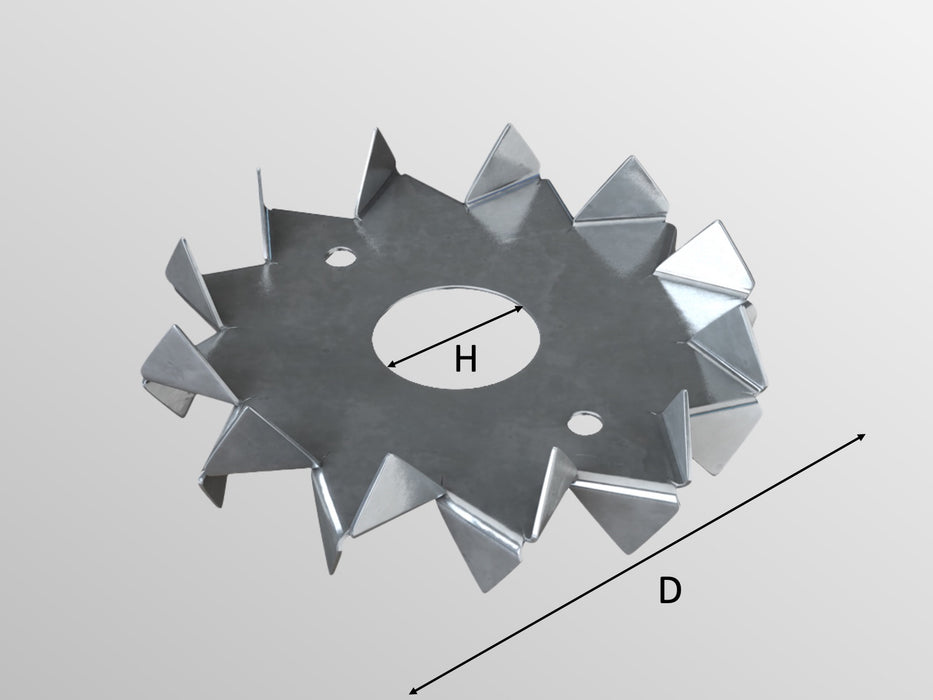

DSTC / SSTC Tooth Plate Connectors

The DSTC / SSTC Tooth Plate Connectors are engineered to enhance the performance of bolted timber connections by reducing joint movement and timber rotation. Ideal for structural applications, these connectors are positioned between timber elements on an M12 bolt before tightening to ensure maximum stability. Manufactured in accordance with BS EN 912:2000, they deliver superior reliability in load-bearing joints. Available in galvanised steel, stainless steel, or hot dip galvanised finishes, they offer versatile solutions for a wide range of construction environments.

Technical Specification

• Data Sheet
• Standard: Manufactured to BS EN 912:2000
• Material: Produced from 1mm thick galvanised steel to BS EN 10346:2009 DX51D +G275
• Variants: Also available in stainless steel and hot dip galvanised finishes
• Application: Placed between timber sections on an M12 bolt to enhance bolt performance
• Function: Minimises timber rotation and joint movement in bolted connections
• Type: C6 / C7 Timber Connector
