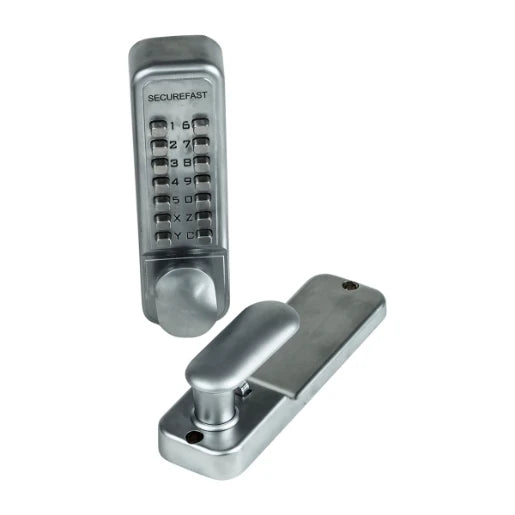

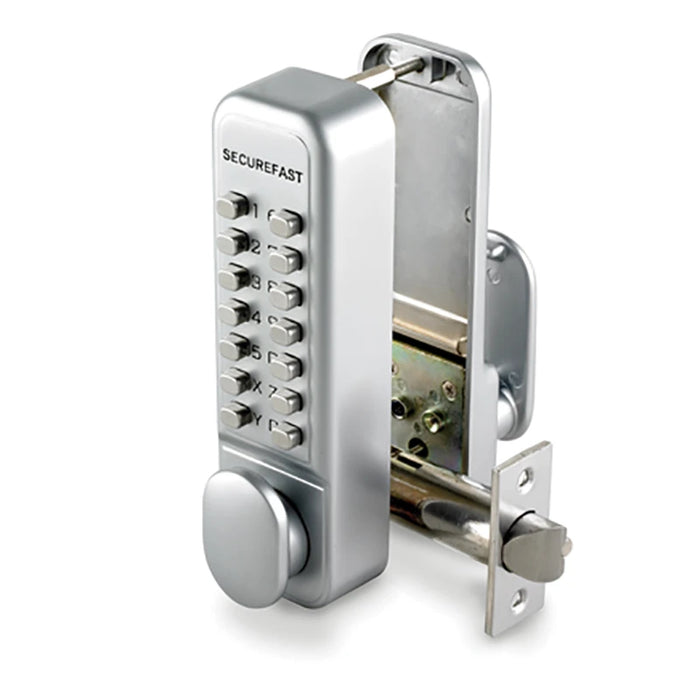

Easy Code Mechanical Digital Lock with Knob & Holdback

The Easy Code Mechanical Digital Lock combines robust security with simplified code management—perfect for both residential and commercial applications. Unlike traditional mechanical locks, this innovative model allows you to change the access code easily using a flathead screwdriver—no need to disassemble the unit or rearrange internal components.

Supplied with a 60mm backset deadlocking tubular latch, the lock features a holdback function on the internal knob for unrestricted access when needed. With over 8,000 non-sequential code combinations, and having passed a 240-hour salt spray test (EN1670), it’s also suitable for external use. The lock is fire-tested to EN1634-1 for use on fire doors up to 1 hour, making it a reliable and versatile entry solution.

Technical Specifications

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Model: Door Code Opener

• Operation: Mechanical (No Power Required)

• Code Capacity: Over 8,000 Non-Sequential Combinations

• Code Change Method: Tool-Based (Simple Dial Rotation with Screwdriver)

• Backset: 60mm Deadlocking Tubular Latch (Included)

• Internal Egress: Large Turn Knob

• Holdback Function: Yes – Allows Free Access When Activated

• Fire Rating: EN1634-1 – Certified for Use on 1-Hour Fire Doors

• Weather Resistance: Salt Spray Tested to EN1670 (240 Hours)

• Mounting Method: Built-In

• Opening Direction (DIN): Left / Right

• With Mechanical Override/Unlocking: Yes

• Suitable for: External and Internal Use

The Easy Code Digital Lock is ideal for high-traffic doors, shared access points, and any location requiring secure, weather-resistant, and fire-rated mechanical entry with easy code reconfiguration.
