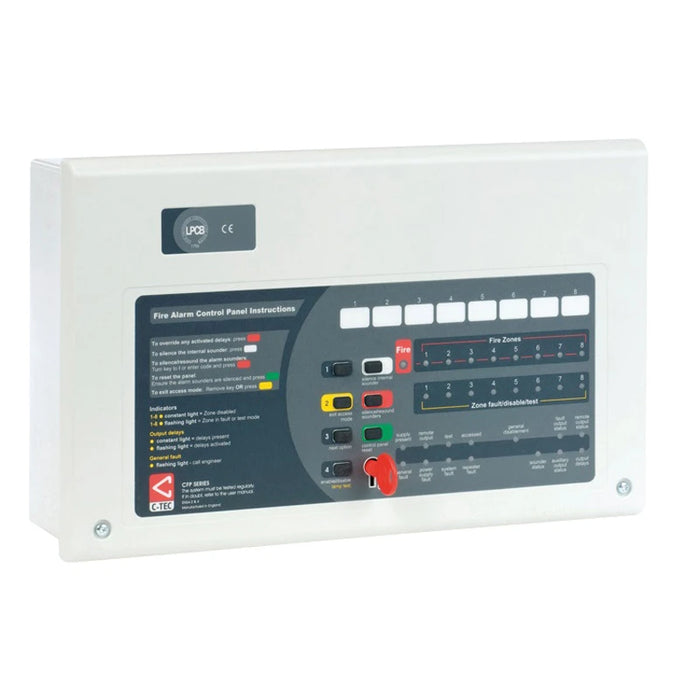

Fire Alarm Panel Cfp Alarmsense 8 Zone 2 Wire

The CFP AlarmSense 8-Zone Two-Wire Fire Alarm Panel is a robust and reliable fire detection solution, ideal for small to medium-sized commercial and residential buildings. Engineered for compatibility with Apollo’s AlarmSense range of detectors and call points, this panel supports up to eight zones with a simplified two-wire installation method. Featuring a user-friendly interface with color-coded controls and a combined keypad/key switch entry system, it ensures intuitive operation and fast access during emergencies. Certified to EN54 Parts 2 and 4 by the LPCB, this panel includes an integrated 1.5A switch mode power supply and offers four conventional sounder circuits for flexible system design.

Technical Specification

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Model: CFP AlarmSense 8-Zone Fire Alarm Panel

• Zones: 8 (Two-wire AlarmSense-compatible)

• Sounder Circuits: 4 conventional circuits

• Power Supply: Integral 1.5A EN54-4/A2 compliant switch mode PSU

• Battery Capacity: Supports up to 2 x 3.2Ah batteries

• User Interface:

  • Color-coded buttons

  • Combined keypad and key switch access

• Certifications:

  • EN54 Parts 2 & 4

  • LPCB Third-party certified

• Mounting Method: Surface mounting

• Dimensions: 367mm (W) x 220mm (H) x 75mm (D)

• Operating Voltage: 230V

• Electricity Consumption: 350mA

• External Interface: Yes

• Bus Connection: Not supported

• Radio Connection: Not supported
