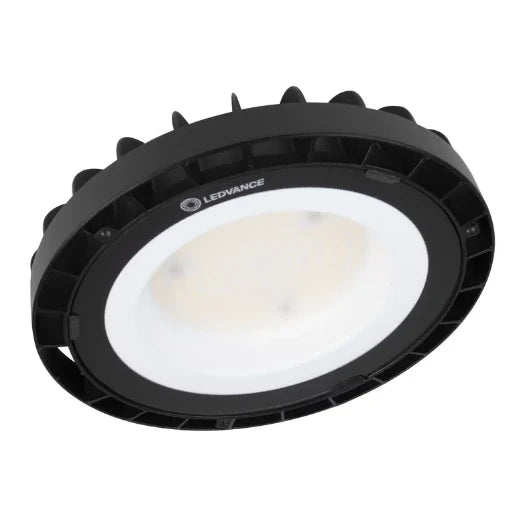

High Bay Compact V 133W 840 110 Degree IP65

The Ledvance High Bay Compact V 133W 4000K IP65 is a high-performance LED luminaire designed to deliver powerful illumination with maximum energy efficiency. Ideal for both indoor and outdoor high and low bay lighting applications, this LED high bay offers up to 60% energy savings compared to traditional high bay luminaires, making it a smart investment for industrial, warehouse, retail, or commercial environments.

Its sleek and compact form factor simplifies installation and reduces weight without compromising performance. With a symmetric light distribution and a wide 110° beam angle, the High Bay Compact V ensures consistent lighting coverage across large areas. Designed to operate reliably in harsh conditions, it carries an IP65 protection rating for dust and water resistance and an IK06 impact resistance rating, making it suitable for demanding environments.

Crafted with a durable aluminium housing in a modern black finish, the luminaire features integrated, non-replaceable LEDs with a lifetime of 50,000 hours and emits neutral white light at 4000K. The product comes with a 4-year manufacturer guarantee for added peace of mind.

Technical Specification

• Download Product Technical Data Sheet

• Download Product Technical Data Sheet

• Model: High Bay Compact V

• Power Consumption: 133 W

• Luminous Efficacy: High-efficiency LED

• Light Output: Symmetric distribution

• Beam Angle: 110°

• Colour Temperature: 4000K (Neutral White)

• CRI (Colour Rendering Index): 80–89

• Light Source: Integrated, non-replaceable LED

• Voltage Type: AC

• Input Voltage: 220–240 V

• Nominal Current: 580 mA

• Power Factor: 0.9

• Rated Lifetime (L70/B50 @ 25°C): 50,000 hours

• Housing Material: Aluminium

• Housing Colour: Black

• Outer Diameter: 220 mm

• Height/Depth: 50 mm

• Ingress Protection: IP65

• Impact Resistance: IK06

• Photobiological Safety: RG1 (EN 62471)

• Control Gear: Included

• Dimming Capability: None

• Emergency Lighting Compatibility: No

• Temperature Range: -20°C to +45°C

• Cabling Type: Ending, 3-pole

• Conductor Cross Section: 1 mm²

• Max. Fittings per C16 Breaker: 22

• Max. Fittings per B16 Breaker: 22

• Compliance: Class I (IEC 61140), SDCM5 colour consistency

• Protective Cover: Yes

• Replaceable Control Gear: No

• Bluetooth, Zigbee, RF, or DALI Dimming: Not supported

• Mounting: Suitable for high/low bay use in industrial and commercial settings

• Guarantee: 4 Years
