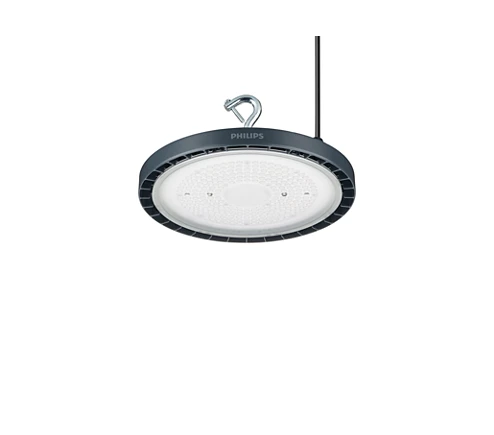

Highbay LED BY120P LED105S/840 PSU WB

The CoreLine BY120P LED Highbay Gen5 offers a premium lighting solution for industrial and commercial environments. Designed to be energy-efficient, low-maintenance, and easy to install, this high-performance luminaire delivers 10,500 lumens at just 67 watts, achieving an outstanding efficacy of 157 lumens per watt.

Ideal for warehouses, manufacturing plants, and large retail spaces, the CoreLine Highbay features a robust IK08-rated construction, a long 50,000-hour lifetime (L85), and wide operating temperature compatibility from -30°C to +50°C. With its ENEC-certified driver and plug-and-play electrical connection using an external IP65 connector, installation is fast, safe, and hassle-free—no need to open the housing.

This model is also Interact Ready, featuring optional integration with wireless controls, motion and daylight sensors for even greater energy savings and lighting control across your facility.

Technical Specification

• Download Product Technical Data Sheet

• Model: BY120P LED105S/840 PSU WB

• Wattage: 67W

• Lumen Output: 10,500 lumens

• Luminous Efficacy: 157 lm/W

• Colour Temperature: 4000K (Cool White)

• Driver Type: ENEC-rated, fixed output

• Lifetime: 50,000 hours (L85)

• Operating Temperature Range: -30°C to +50°C

• Impact Protection: IK08

• Installation: Pre-fitted mounting hook (stirrup bracket available separately)

• Electrical Connection: External IP65 connector – no need to open luminaire

• Circuit Protection: Up to 8 units can run on a C-16A MCB

• Smart Control: Interact Ready with optional integrated wireless communication and sensor options

• Applications: Warehouses, distribution centres, retail, industrial manufacturing units
