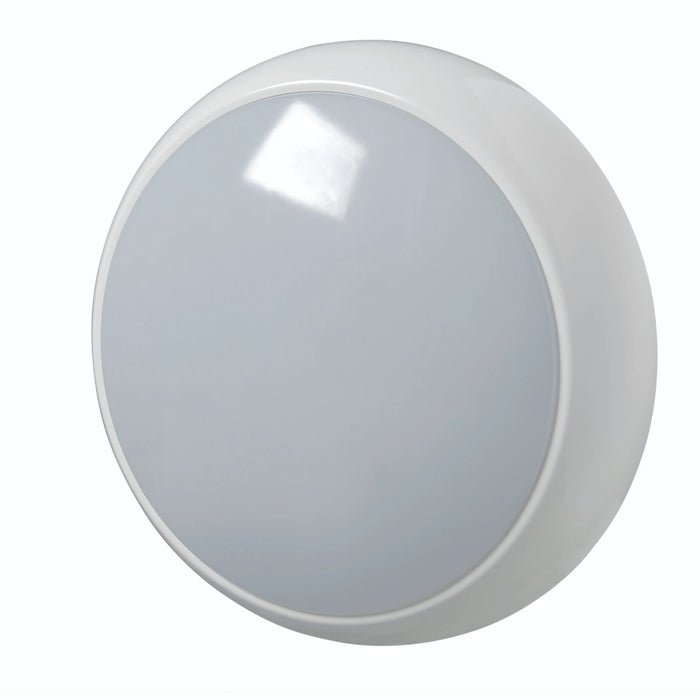

Luminaire LED Smd Golf 10W 800lm 330 x 118mm 4000K Microwave Sensor IP65

The GOLF 10W LED SMD Luminaire is a high-performance lighting solution designed for a wide range of applications such as retail shops, public buildings, communal areas, sports centres, stairwells, corridors, and walkways. This energy-efficient LED luminaire offers a direct replacement for 28W 2D fluorescent fittings, providing 800 lumens of bright, high-quality light with 82lm/W efficacy. Equipped with a microwave sensor, the luminaire ensures automatic lighting control, only activating when motion is detected, providing both convenience and energy savings.

With an IP65 rating, the GOLF 10W is built to withstand dust and water exposure, making it an ideal choice for both indoor and outdoor environments. Its robust polycarbonate housing and IK09 impact rating ensure durability, while the Pro-diffuser allows for maximum light transmission, low glare, and even light distribution. The fixture features a 4000K colour temperature, providing neutral white light suitable for a variety of spaces.

Whether you're installing it in corridors, stairwells, or other commercial settings, the GOLF 10W LED luminaire is the perfect choice for high-traffic environments where reliability and efficient lighting are essential.

Technical Specification

• Download Product Technical Data Sheet

• Wattage: 10W
• Luminous Output: 800lm
• Colour Temperature: 4000K (Neutral White)
• Luminaire Type: LED SMD with Pro-diffuser
• IP Rating: IP65 - Water and dust resistant, suitable for outdoor use
• Impact Rating: IK09 - High impact resistance for durability
• Efficacy: 82lm/W for energy-efficient performance
• Microwave Sensor: Maximum detection range of Ø12m, with a max mounting height of 3m
• Operating Temperature: -20°C to +35°C
• Rated Lifetime: 50,000 hours (L70/B50 at 25°C)
• Power Factor: 0.9
• Dimensions: Height/Depth - 118mm, Outer Diameter - 330mm
• Voltage: 220-240V
• Suitable for: Surface mounting only (not suitable for recessed or suspended mounting)
• Control Gear: Included
• Light Source Included: Yes
• Unified Glare Rating (UGR): 25.5
• Mounting Type: Ceiling or wall luminaire
• With Movement Sensor: Yes (For energy-saving functionality)
• Trim: Chrome trim available (R282TRIM-03)

This GOLF 10W LED luminaire is ideal for commercial applications, combining durability, energy efficiency, and advanced lighting control into one compact unit. It offers a cost-effective lighting solution while providing high-performance illumination with the added convenience of a microwave sensor for enhanced functionality.
