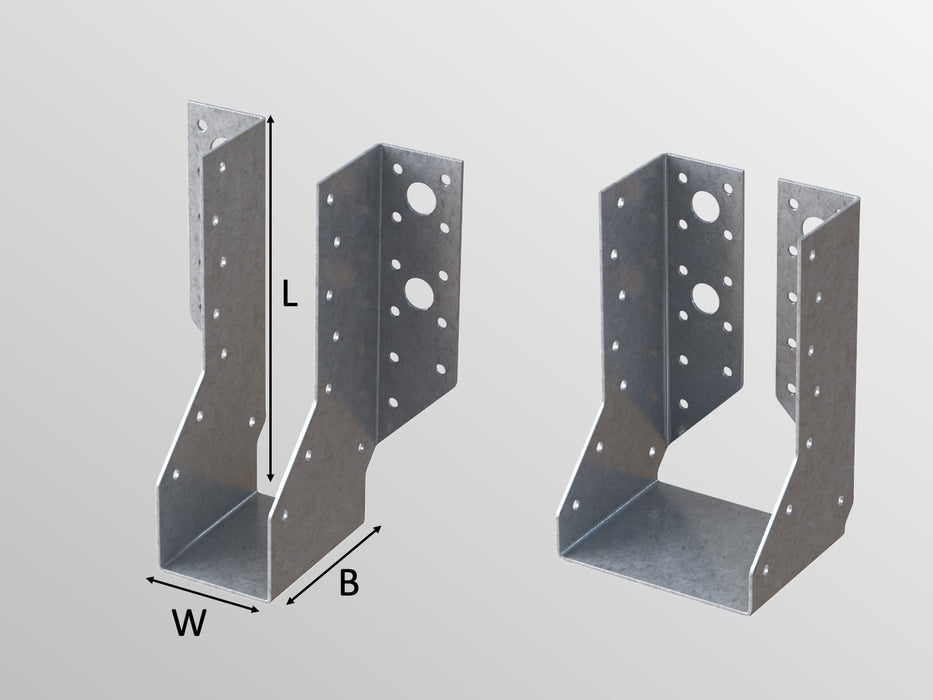

MTH/380 Multi-Truss Hanger & MTH/CF/380 concealed flange

MTH/380 Multi-Truss Hanger & MTH/CF/380 Concealed Flange are designed for heavy-duty applications including multiple truss units, main trimmer joists, and purlin to beam connections where exceptionally high loads occur. The MTH/380 offers robust structural support with bolt holes sized for M12 fixings and 5mm diameter nail holes. The MTH/CF/380 variant features face plates folded inwards for concealed fixings, providing a cleaner finish without compromising strength.

Technical Specification:

• Data Sheet
• Application: Heavy duty support for multiple truss units, main trimmer joists, and purlin to beam connections
• Material: Manufactured from 1.5mm thick galvanised steel to BS EN 10346:2009 + G275; stainless steel versions available on request
• Fixings: Bolt hole designed for M12 fixing; nail holes 5mm diameter
• Fixing Options:
  • Type A: 30mm x 3.75mm sheradised square twist nails (manual fixing)
  • Type B: 35mm x 3.75mm sheradised square twist nails (collated for nail gun fixing)
