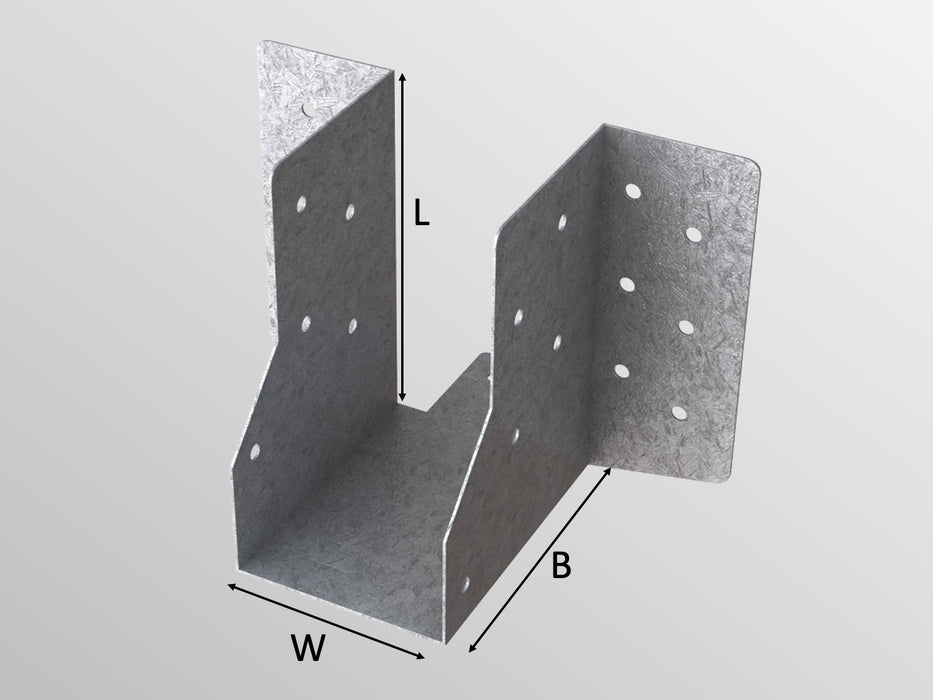

MTS Mono Truss Shoe

MTS Mono Truss Shoe is purpose-built for supporting short span, mono, or in-fill trusses where lower load capacities are required compared to standard girder truss shoes. Ideal for mono truss to girder connections in low-load applications, this truss shoe offers a secure and efficient method of connection while maintaining structural integrity. Its compact design makes it suitable for confined spaces, ensuring a reliable and economical solution for residential or light commercial roof structures.

Technical Specification:

• Data Sheet
• Application: Low-load mono, short span, or in-fill truss to girder connections
• Material: Manufactured from 0.9mm thick galvanised steel to BS EN 10346:2009 +G275 (stainless steel available to order)
• Design: Compact, lightweight, and suitable for low load-bearing requirements
• Fixing Options:
  • Type A: 30mm x 3.75mm sheradised square twist nails (manual fixing)
  • Type B: 35mm x 3.75mm sheradised square twist nails (collated for nail gun fixing)
