Neff Z861KR0 70cm+ Recirculation Starter Kit
excl. VAT
💳 0% APR Finance Available*
The Neff Z861KR0 70cm+ Recirculation Starter Kit is a complete accessory kit designed for partly ducted recirculation configurations of Neff cooktops with integrated ventilation modules. Perfect for kitchens with worktop depths of 70cm or larger, this kit includes all the essential ducting components required for efficient and quiet air recirculation. The included diffusor element ensures even air distribution through the plinth area, while the flat duct elements and connector sleeves provide secure, airtight connections. Designed for worktop heights up to 960mm, the Z861KR0 ensures professional-grade installation and consistent airflow performance in any modern kitchen.
Technical Specification
-
Download Product Technical Data Sheet
- Product Type: Ducting
- Type: Ducting Kit
- Brand: Neff
- Model No.: Z861KR0
-

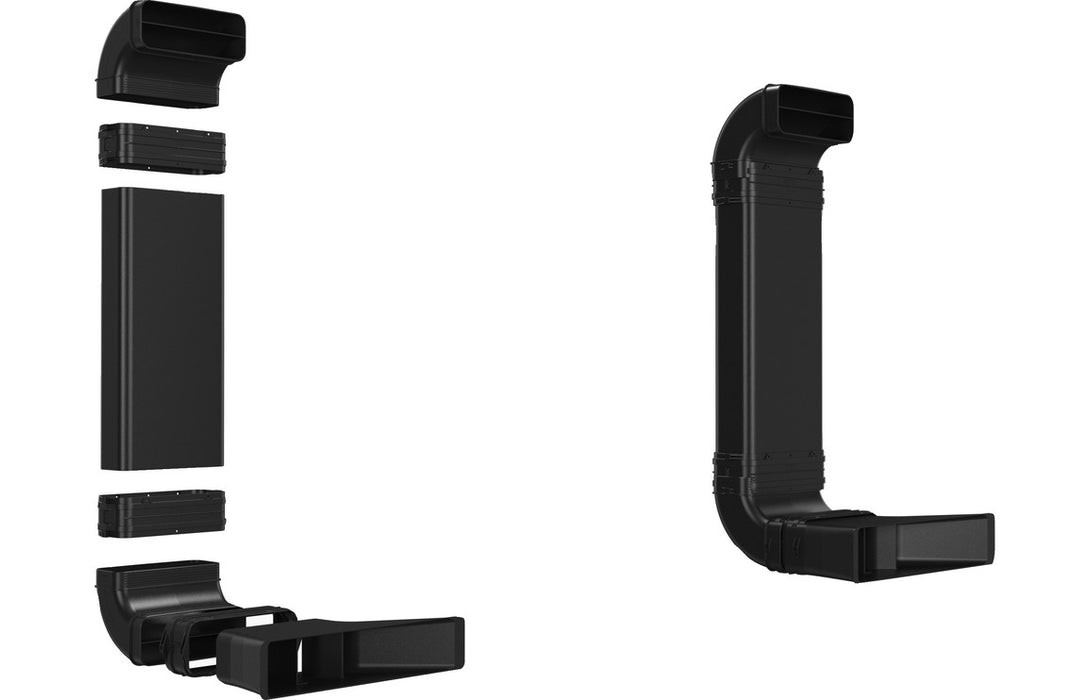

Kit Contents:
- 2 × Vertical 90° “L” bow flat duct elements (male)
- 3 × Connector sleeves (female) for joining male duct elements
- 1 × Straight tube element (male, 500mm)
- 1 × Diffusor element for even air distribution in the plinth area
- Application: Suitable for partly ducted recirculation configurations in kitchens with worktop depths ≥ 70cm
- Compatibility: Designed for Neff cooktops with integrated ventilation modules
- Installation Height: Supports worktop heights up to 960mm
- Colour: Black
- Material: Plastic
- Design: Aerodynamically optimised for smooth airflow and reduced pressure loss
- Packaged Weight: 0.1kg
- Barcode (EAN): 4242004264675
- Manufacturer’s Guarantee: 1 Year
