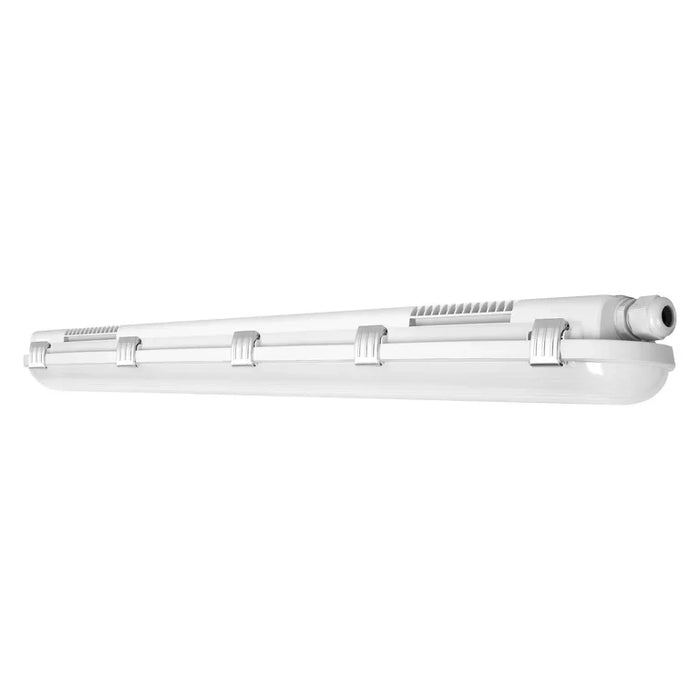

NON-CORROSIVE 1200 18W 840 IP65 GY

The Ledvance NON-CORROSIVE 1200 18W 840 IP65 GY LED batten luminaire is a high-efficiency, durable lighting solution ideal for industrial and commercial settings such as car parks, underpasses, garages, and workshops. With energy savings of up to 60% compared to traditional fluorescent luminaires, this 1200mm LED fixture delivers consistent, cool white 4000K light with low flicker (<10%) and even distribution. Built to withstand tough environments, it features an IP65 dust and water resistance rating and a rugged IK08 impact-resistant housing. Installation is quick and easy, requiring no tools, thanks to its screwless terminal connection and surface/suspended mounting compatibility.

Technical Specification

• Download Product Technical Data Sheet

• Product Type: Damp-proof LED ceiling/wall luminaire

• Light Source Type: LED (non-replaceable)

• Maximum System Power: 18 W

• Light Colour: White

• Colour Temperature: 4000 K (Cool White)

• CRI (Colour Rendering Index): 80–89

• Photobiological Safety: RG0 (No risk)

• Power Factor: 0.9

• Flicker Value: Low flicker (≤10%)

• Rated Life (L70/B50 @ 25 °C): 70,000 hours

• Voltage Type: AC

• Nominal Voltage: 220 – 240 V

• Nominal Current: 90 mA

• Control Gear: Electronic ballast included

• Control Gear Replaceable: No

• Connection Type: Screwless terminal

• Through Wiring: Suitable

• Mounting Options:

  • Ceiling mounting: Yes

  • Wall mounting: Yes

  • Surface mounting: Yes

  • Suspended mounting: Yes

  • Recessed mounting: No

• Housing Material: Plastic

• Housing Colour: Grey

• Surface Protection: Untreated

• Cover Material: Plastic opal

• Light Diffuser Type: Diffuser

• Light Outlet: Direct

• Colour Consistency: SDCM4

• Impact Resistance (IK Rating): IK08

• IP Rating: IP65 (dust-tight and water-resistant)

• Dimensions:

  • Length: 1200 mm

  • Width: 82 mm

  • Height/Depth: 68 mm

• Number of Poles: 3

• Number of Lamps: 0

• Max. Luminaires per MCB B16: 58

• Max. Luminaires per MCB C16: 73

• Ambient Operating Temperature: -25 °C to +40 °C

• Smart Integration:

  • IFTTT Compatible: Yes

  • Alexa, Google Assistant, Apple HomeKit: No

• Dimming Functionality: Not dimmable

• Sensors:

  • Motion Sensor: No

  • Light Sensor: No

• Workplace Compliance: Not suitable per EN 12464-1

• Thermal Insulation Compatibility: Not suitable

• Light Source Included: Yes
