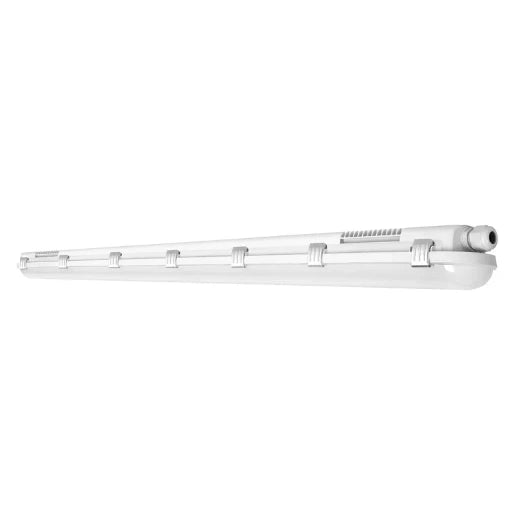

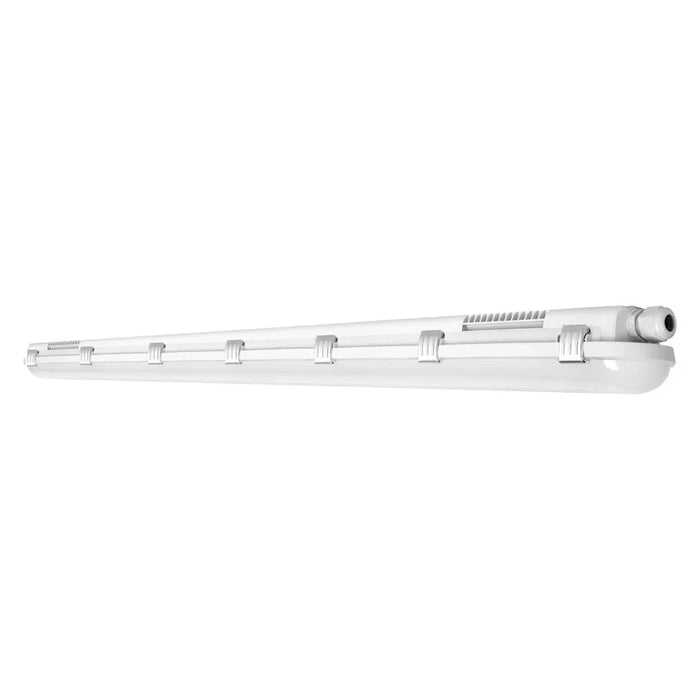

NON-CORROSIVE 1500 26W 840 IP65 GY

The Ledvance NON-CORROSIVE 1500 26W 840 IP65 GY LED batten luminaire is a high-performance, energy-efficient lighting solution ideal for harsh environments such as car parks, garages, underpasses, and workshops. Designed for industrial use, this IP65-rated fixture offers superior protection against dust and moisture, making it suitable for both indoor and outdoor applications. It delivers evenly distributed cool white light (4000K) with low flicker (<10%), providing a comfortable and visually consistent atmosphere. With energy savings of up to 60% compared to traditional fluorescent lamps, the luminaire ensures reduced operational costs and easy, tool-free installation via screwless terminals. Built with a durable IK08 impact-resistant housing, it guarantees longevity with a rated life of up to 70,000 hours.

Technical Specification

• Download Product Technical Data Sheet

• Product Type: Damp-proof LED batten luminaire

• Light Source Type: LED (non-replaceable)

• Maximum System Power: 26 W

• Light Colour: Cool White

• Colour Temperature: 4000 K

• Colour Rendering Index (CRI): 80–89

• Photobiological Safety: RG0 (no risk)

• Power Factor: 0.9

• Flicker Value: ≤10% (Low Flicker)

• Voltage Type: AC

• Nominal Voltage: 220 – 240 V

• Nominal Current: 150 mA

• Rated Life (L70/B50 @ 25 °C): 70,000 hours

• Housing Material: Plastic

• Cover Material: Plastic opal

• Light Diffuser Type: Diffuser

• Light Outlet: Direct

• Housing Colour: Grey

• Surface Protection: Untreated

• Colour Consistency: SDCM4

• Impact Resistance (IK Rating): IK08

• IP Rating: IP65 (dust-tight and water-resistant)

• Mounting Options:

  • Ceiling mounting: Yes

  • Wall mounting: Yes

  • Surface mounting: Yes

  • Suspended mounting: Yes

  • Recessed mounting: No

• Connection Type: Screwless terminal (tool-free installation)

• Through Wiring: Suitable

• Smart Features:

  • IFTTT Compatible: Yes

  • Voice Assistant Compatibility: No (Alexa, Google Assistant, HomeKit not supported)

• Control Gear: Electronic ballast included (non-replaceable)

• Dimming: Not dimmable

• Sensors:

  • Motion Sensor: No

  • Light Sensor: No

• Ambient Operating Temperature: -25 °C to +40 °C

• Dimensions:

  • Length: 1500 mm

  • Width: 82 mm

  • Height/Depth: 68 mm

• Max. Number of Luminaires per MCB:

  • B16: 56

  • C16: 71

• Lamps Included: Yes

• Suitable for Light Line Configuration: No

• Workplace Compliance: Not suitable under EN 12464-1

• Thermal Insulation Compatibility: Not suitable
