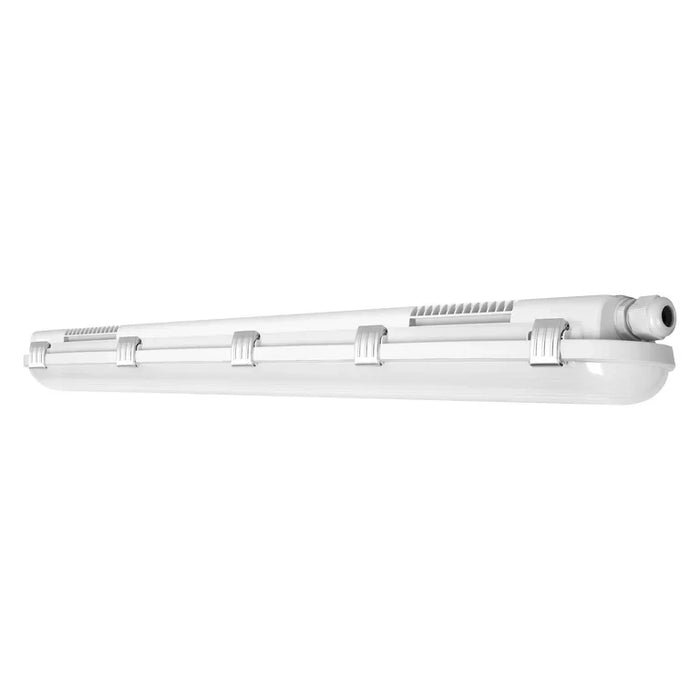

NON-CORROSIVE EM 1200 18W 865 IP65 GY

The LEDVANCE Non-Corrosive EM 1200 18W 865 is a durable and efficient LED batten luminaire designed for environments like car parks, underpasses, garages, and workshops. With integrated emergency lighting functionality, this IP65-rated fitting delivers up to 60% energy savings compared to conventional fluorescent fittings. It features a cool daylight 6500K colour temperature, offering clear, consistent lighting with an emergency backup runtime of 3 hours. Installation is quick and tool-free, thanks to a prewired driver and battery, and includes an automatic test function with a status LED for easy compliance.

Technical Specification

• Download Product Technical Data Sheet

• Product Type: Damp-proof LED batten with integrated emergency function

• Length: 1200 mm (4ft)

• Maximum System Power: 18 W

• Colour Temperature: 6500K (Cool Daylight)

• Light Source Type: LED non-replaceable

• Light Output: Direct

• IP Rating: IP65 – Dust and water resistant

• IK Rating: IK08 – High impact resistance

• Housing Colour: Grey

• Housing Material: Plastic (untreated surface)

• Diffuser Material: Plastic opal

• Diffuser Type: Diffuser

• Control Gear: Electronic ballast (included)

• Connection Type: Screwless terminal

• Colour Rendering Index (CRI): 80–89

• Power Factor: 0.9

• Voltage Type: AC

• Nominal Voltage: 220–240 V

• Nominal Current: 90 mA

• Rated Lifetime (L70/B50 at 25 °C): 70,000 hours

• Photobiological Safety (EN 62471): RG0

• Cable Type: Suitable for through wiring

• Mounting Options: Wall, ceiling, and suspended

• Emergency Lighting: Yes – 3-hour battery backup with automatic test function

• Smart Compatibility: IFTTT support only

• Light Source Included: Yes

• Width: 82 mm

• Height/Depth: 68 mm

• Number of Poles: 3

• Recessed Mounting: Not suitable

• Dimming Capabilities: Not dimmable
