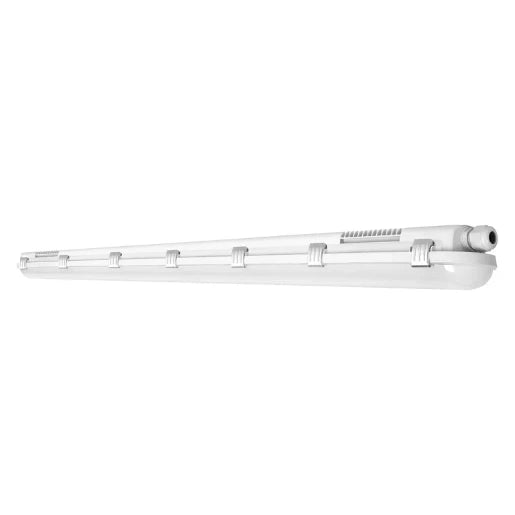

NON-CORROSIVE EM 1500 26W 865 IP65 GY

The LEDVANCE NON-CORROSIVE EM 1500 26W 865 IP65 GY is a highly efficient and durable LED damp-proof luminaire with an integrated emergency lighting function, ideal for use in car parks, garages, underpasses, and workshops. Designed for long-term performance, it features a built-in LiFePO4 battery offering 3 hours of emergency runtime, combined with tool-free installation and prewired driver and battery for simple and quick setup.

Delivering cool white light at 6500K, this luminaire enhances visibility while maintaining a pleasant atmosphere. Its rugged IP65-rated housing ensures resistance to water and dust, while an IK08 impact resistance rating guarantees mechanical durability. The unit is also engineered for energy savings of up to 60% compared to fluorescent alternatives, making it a smart and sustainable lighting solution.

Technical Specification

• Download Product Technical Data Sheet

• Product Code: LEDVANCE NON-CORROSIVE EM 1500 26W 865 IP65 GY

• Light Source Type: LED, non-replaceable

• Maximum System Power: 26 W

• Emergency Lighting Function: Yes, with LiFePO4 battery (3h discharge time)

• Automatic Test Function: Yes, with integrated control LED

• Energy Efficiency: Up to 60% savings vs. fluorescent lamps

• Light Source Included: Yes

• Control Gear: Electronic ballast (included)

• Replaceable Control Gear: No

• Voltage Type: AC

• Nominal Voltage: 220 – 240 V

• Nominal Current: 125 mA

• Power Factor: 0.9

• Colour Temperature: 6500 K (Cool White)

• CRI (Colour Rendering Index): 80 – 89

• Photobiological Safety (EN 62471): RG0 (No Risk)

• Colour Consistency: SDCM4

• Ingress Protection (IP Rating): IP65

• Impact Resistance (IK Rating): IK08

• Housing Colour: Grey

• Housing Material: Plastic

• Cover Material: Plastic opal

• Light Diffuser Type: Diffuser

• Connection Type: Screwless terminal

• Cabling Type: Suitable for through wiring

• Mounting Options: Ceiling, Wall, Surface, Suspended

• Recess Mounting: Not suitable

• Luminaire Dimensions:

  • Length: 1500 mm

  • Width: 82 mm

  • Height/Depth: 68 mm

• Rated Lifetime (L70/B50 @ 25 °C): 70,000 hours

• Number of Poles: 3

• Suitable for Emergency Lighting: Yes

• Operating Temperature Range: +5 °C to +35 °C

• Dimming Capability: None

• Smart Home Compatibility:

  • IFTTT Support: Yes

  • Alexa / Google Assistant / Apple HomeKit: No

• Flicker and Glare Values:

  • Unified Glare Rating (UGR): Not specified

  • Flickering Value (Pst LM): Not specified

  • Stroboscopic Effect (SVM): Not specified

• Max. Luminaires per MCB:

  • B16: 56 units

  • C16: 71 units

• Other Notes:

  • No air slots

  • Not suitable for thermally insulating materials

  • Luminaire with limited surface temperature (Class D): No

  • Workplace suitability (EN 12464-1): No
