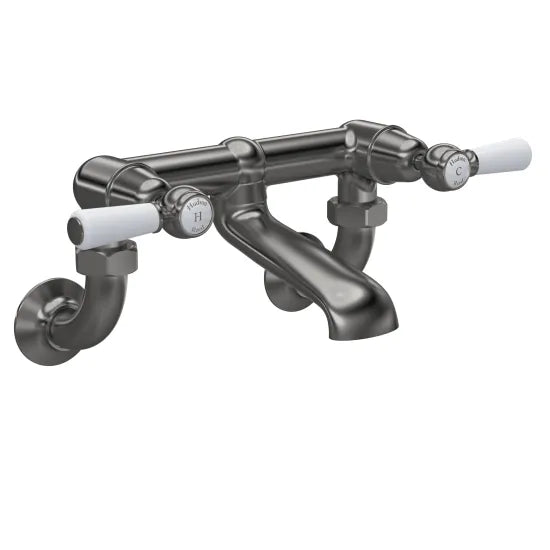

Old London Topaz Brushed Pewter Wall Mounted Bath Filler With Dome Collar and Lever Handle

Create a clean, elegant bathing space with the Old London Topaz Wall Mounted Bath Filler, combining traditional styling with practical modern performance. Crafted from solid brass, this wall-mounted bath filler features classic lever handles with refined dome collar detailing for an authentic heritage appearance while keeping the bath rim uncluttered. Durable 1/4 turn ceramic disc cartridges provide smooth, drip-free operation, and compatibility with water systems from 0.2 bar makes it suitable for a wide range of installations. Available in a range of finishes to complement your bathroom design.

Technical Specification

• Download Product Technical Data Sheet

• Brand: Old London
• Range: Topaz
• Style: Traditional
• Product type: Wall-mounted bath filler
• Wall-mounted installation
• Requires 2 tap holes
• Manual control
• Solid brass construction
• Lever handles with dome collar detail
• Number of handles: 2
• 1/4 turn ceramic disc cartridge
• Cartridge included: Yes
• Handset included: Yes
• Waste sold separately
• Available in a range of finishes

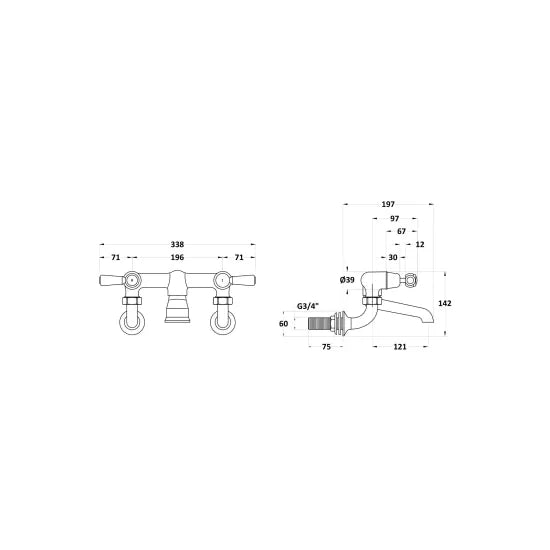

• Product weight: 2 kg
• Product height: 142 mm
• Product width: 338 mm
• Product depth: 197 mm
• Spout projection: 121 mm
• Pipe centres: 196 mm
• Pipe size: 22 mm (3/4" BSP)
• Connection size: 22 mm (3/4" BSP)
• Mount type: Wall hung
• Minimum operating pressure: 0.2 bar
• Flow rate at 0.1 bar: 8 L/min
• Flow rate at 0.5 bar: 19.3 L/min
• Flow rate at 1.0 bar: 27.5 L/min
• Flow rate at 2.0 bar: 39.4 L/min
• Flow rate at 3.0 bar: 47.8 L/min
• Waste included: No
• WRAS approved: No
• TMV2 approved: No
• TMV3 approved: No
• 3-year manufacturer's guarantee
