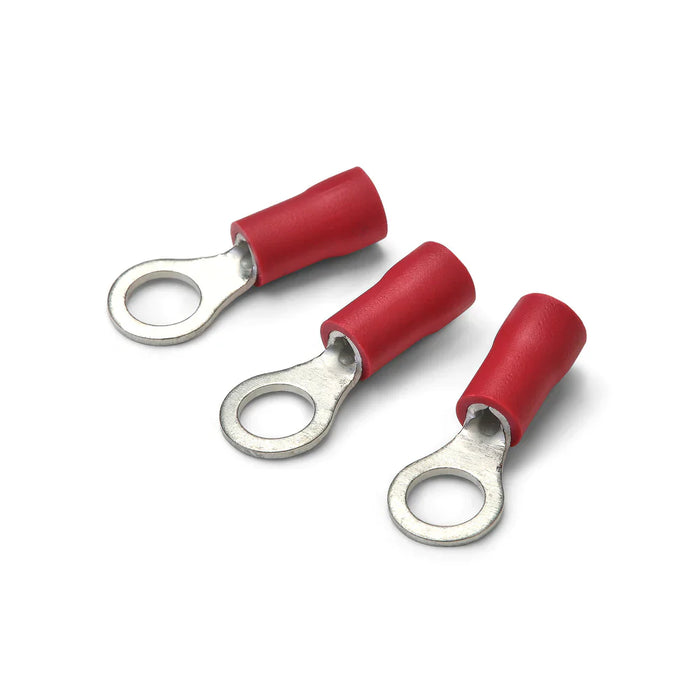

Red Ring Terminal - Insulated - Pack of 100

Our Red Insulated Ring Terminals provide a secure, high-conductivity solution for connecting electrical wires to studs, screws, or grounding points. Manufactured from premium copper with electro-tin plating, these crimp ring terminals offer excellent conductivity, corrosion resistance, and long-term durability. The red PVC insulation ensures easy wire-size identification while providing added protection during installation. Ideal for electrical manufacturing, automotive wire harnesses, marine wiring, and general electrical applications, these terminals deliver reliable performance in both professional and DIY environments. Supplied in packs of 100, with datasheets available upon request.

Technical Specification

• Type: PVC Insulated Ring Terminal
• Insulation Colour: Red
• Wire Size Compatibility: 0.5mm² – 1.5mm²
• Stud Size Options: 3.2mm – 13mm
• Terminal Material: Copper with Electro-Tin Plating (PVC Insulated)
• Pack Quantity: 100pcs
• Maximum Operating Temperature: 75°C
• Maximum Electrical Rating: 600V Max
• RoHS Compliant
• Halogen Free
• REACH Compliant
• Size Options:
  • 3mm: Stud Size 3.2mm
  • 3.5mm: Stud Size 3.7mm
  • 4mm: Stud Size 4.3mm
  • 5mm: Stud Size 5.3mm
  • 6mm: Stud Size 6.5mm
  • 8mm: Stud Size 8.4mm
  • 10mm: Stud Size 10.5mm
  • 12mm: Stud Size 13mm
