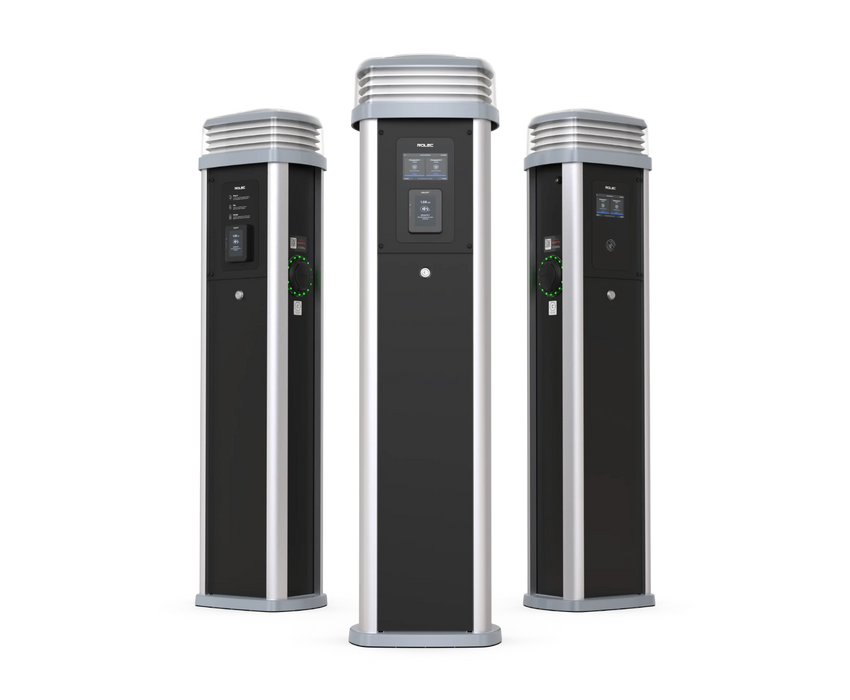

Rolec EV Quantum Contactless Payment EV Charger 22kW 1 x Type 2 Sockets Black with access door

The Rolec Quantum 22kW EV Charger is a robust and stylish pedestal charging solution, designed for high-traffic public, workplace, and commercial EV charging environments. With a single Type 2 socket and finished in a sleek black housing with an integrated access door, this unit delivers ultra-fast 22kW charging via a 3-phase connection.

Built to perform in all environments, the Quantum EV charger supports multiple access options, including plug & charge, mobile app, RFID, or contactless payment (model dependent). Its vandal-resistant aluminium enclosure and IK10 impact rating ensure long-lasting reliability even in exposed or high-risk locations.

The integrated LED amenity lighting improves visibility and enhances the user experience, while built-in PME fault detection eliminates the need for earth rods, reducing installation time and cost. With OCPP 1.6 compliance, the charger easily integrates with any third-party back-office system or EV charging platform.

Technical Specification

• Download Product Technical Data Sheet

• Charging Output: Up to 22kW (3-Phase)

• Charging Socket: 1 x Type 2

• Access Methods: Plug & Charge, App, RFID, Contactless Payment (model dependent)

• Connectivity: OCPP 1.6 compliant (compatible with all major back-office platforms)

• Smart Features: Dynamic Load Balancing, Static Load Management

• Safety Features: PME Fault Detection (no earth rod required)

• Housing Material: Heavy-duty Aluminium

• Lighting: Integrated LED Amenity Lighting

• Voltage Type: AC

• Installation Side Connection Model: 3-Phase

• Frequency: 50/60 Hz

• Impact Resistance: IK10

• Ingress Protection: Weather-resistant with protective access door

• Max Output Current DC: 32 A

• Max Power per Charging Point: 22 kW

• Dimensions:

  • Width: 375 mm

  • Height: 1440 mm

  • Depth: 275 mm

• Number of Charging Units: 1

Ideal for commercial deployments and scalable charging networks, the Rolec Quantum 22kW EV charger blends performance, security, and smart features into one sleek, reliable unit.
