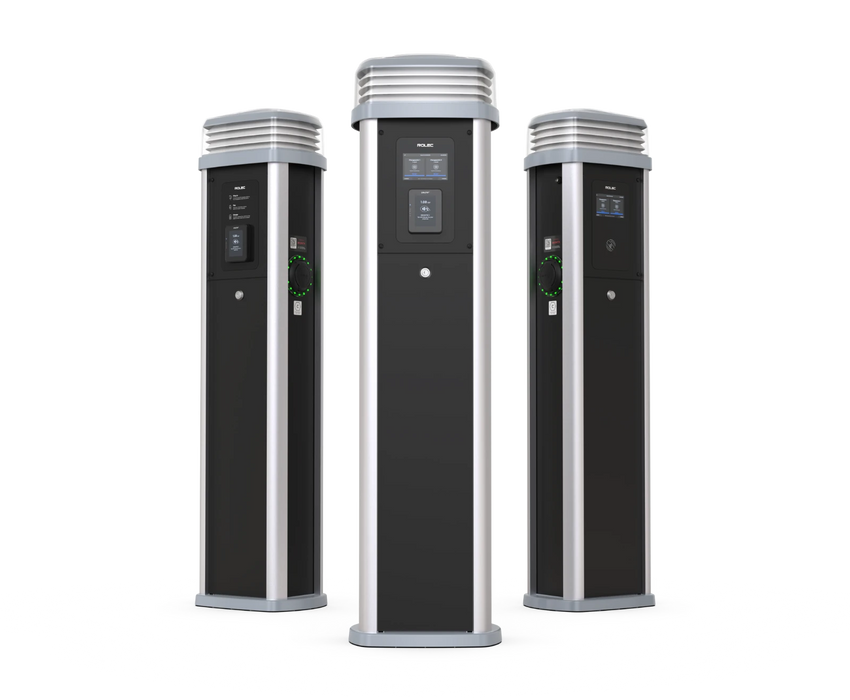

Rolec EV Quantum Contactless Payment EV Charger 22kW 2 x Type 2 Sockets Black with access door

The Rolec Quantum EV Charger is a premium, floor-standing EV charging pedestal designed for commercial and public installations. Featuring 2 x Type 2 sockets and a sleek black design with an access door, it offers reliable, high-speed charging at up to 22kW per socket. Ideal for modern car parks, workplaces, and retail environments, this robust charger includes contactless payment capability, OCPP 1.6 compliance, and PME fault detection, eliminating the need for earth rods. Integrated LED amenity lighting ensures the charging station is visible and safe to use in low-light conditions.

Technical Specification

• Download Product Technical Data Sheet

• Charging Outlets: 2 x Type 2 Sockets

• Charging Power: Up to 7.4kW or 22kW per socket (3-phase)

• Voltage Type: AC

• Installation Type: 3-phase connection

• Material: Heavy-duty aluminium housing

• Finish: Black with access door

• Charging Access Options:

  • Plug & charge

  • App-controlled

  • RFID card access

  • Contactless payment (model dependent)

• Standards & Compliance:

  • OCPP 1.6 compliant (compatible with all major back-office systems)

  • PME fault detection (no earth rod required)

• Load Management: Supports dynamic load balancing & static load control

• LED Lighting: Integrated amenity lighting for enhanced visibility

• Dimensions:

  • Height: 1440 mm

  • Width: 375 mm

  • Depth: 275 mm

• Frequency: 50/60 Hz

• Max Output Current: 32A per socket

• Number of Charging Units: 2

The Rolec Quantum 22kW EV Charging Pedestal offers a powerful, stylish, and user-friendly solution for any commercial EV charging environment—combining advanced features, smart technology, and reliable performance.
