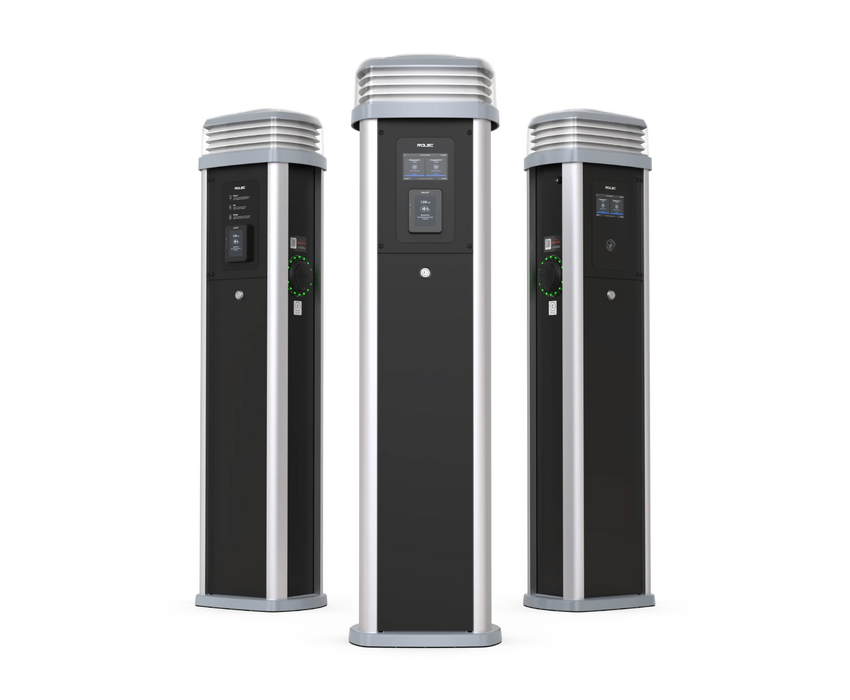

Rolec EV Quantum Contactless Payment EV Charger 22kW 2 x Type 2 Sockets Black with access door & LCD Screen

The Rolec Quantum 22kW EV Charging Pedestal is a high-performance, dual-socket charging station designed for durability, functionality, and user convenience. Featuring 2 x Type 2 sockets, a clear LCD screen, and contactless payment capabilities, this stylish pedestal is ideal for commercial, public, and workplace EV charging. The Quantum pedestal also includes integrated LED amenity lighting to improve visibility and safety in low-light environments. With PME fault detection, dynamic load balancing, and OCPP 1.6 compliance, this EV charger is built for seamless integration into any smart charging network.

Technical Specification

• Download Product Technical Data Sheet

• Charging Outlets: 2 x Type 2 Sockets

• Max Charging Power: 22kW per socket (3-phase supply)

• Input Voltage: AC

• Installation Type: 3-phase connection

• Material: Premium aluminium housing

• Colour: Black with front access door

• Control Options:

  • Plug & Charge

  • RFID authentication

  • Mobile App Control

  • Contactless Payment (model dependent)

• Smart Features:

  • Built-in PME fault detection (no earth rod required)

  • Dynamic load balancing

  • Static load management

  • OCPP 1.6 compliant – integrates with most back-office systems

• User Interface: Integrated LCD screen for real-time information

• Safety & Build:

  • Impact Resistance: IK10

  • Weather Rating: Suitable for outdoor use

  • Integrated LED amenity lighting for night-time visibility

• Dimensions:

  • Height: 1440 mm

  • Width: 375 mm

  • Depth: 275 mm

• Frequency: 50/60 Hz

• Max Output Current: 32A per socket

• Number of Charging Units: 2

Ideal for car parks, commercial premises, and fleet depots, the Rolec Quantum 22kW EV Charger delivers a future-ready, user-friendly solution with premium build quality and reliable performance.
