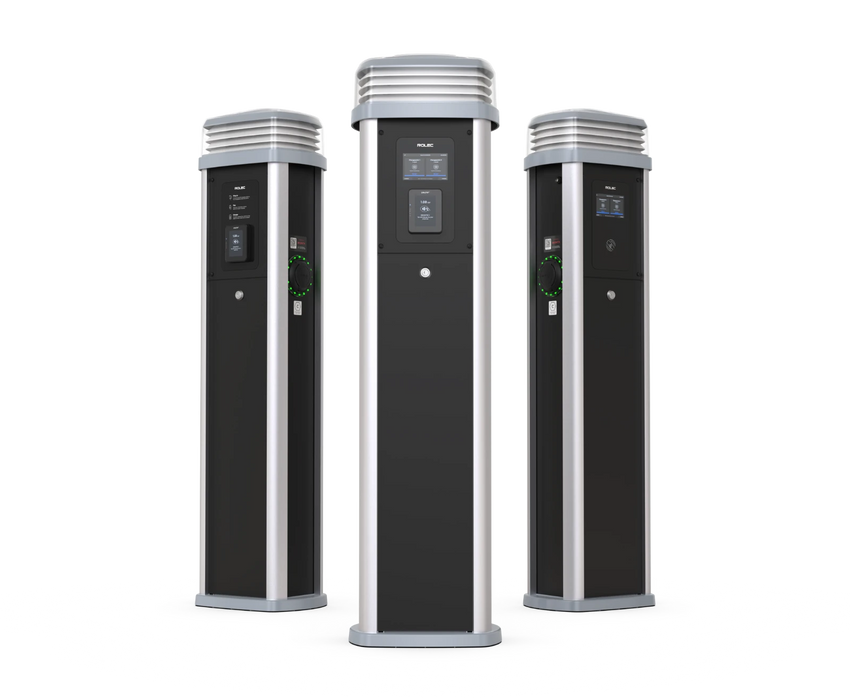

Rolec EV Quantum Contactless Payment EV Charger 7.4kW 1 x Type 2 Sockets Black with access door

The Rolec Quantum EV Charger 7.4kW is a high-performance and durable floor-mounted charging pedestal, ideal for public, workplace, and commercial environments. Finished in sleek black with an integrated access door, this charger features a single Type 2 socket and supports contactless payment, making it the perfect solution for convenient and secure EV charging.

Engineered for modern smart charging networks, the Quantum pedestal offers plug & charge, mobile app, RFID, and contactless payment options (model dependent), ensuring a seamless user experience. Its robust aluminium construction, combined with PME fault detection and OCPP 1.6 compliance, allows it to operate reliably in all outdoor conditions without the need for an earth rod.

This charger is fully compatible with dynamic load balancing and static load management systems, making it easy to scale in multi-charger installations. The integrated LED amenity lighting improves bay visibility, enhancing safety and aesthetics.

Technical Specification

• Download Product Technical Data Sheet

• Charging Output: Up to 7.4kW (Single Phase)

• Charging Socket: 1 x Type 2

• Access Methods: Plug & Charge, App, RFID, Contactless Payment (model dependent)

• Connectivity: OCPP 1.6 compliant (compatible with all major back-office platforms)

• Smart Features: Dynamic Load Balancing, Static Load Management

• Safety Features: PME Fault Detection (no earth rod required)

• Housing Material: Durable Aluminium

• Lighting: Integrated LED Amenity Lighting

• Installation: Floor-mounted

• Voltage Supply Type: AC

• Installation Side Connection Model: Single Phase

• Impact Resistance: IK10

• Ingress Protection: Weather-resistant design

• Frequency: 50/60 Hz

• Max Power per Charging Point: 7.4 kW

• Max Output Current DC: 32 A

• Dimensions:

  • Width: 375 mm

  • Height: 1440 mm

  • Depth: 275 mm

• Number of Charging Units: 1

The Rolec Quantum 7.4kW EV pedestal charger offers cutting-edge technology, versatile access options, and a strong, weatherproof design—perfect for any modern EV charging infrastructure.
