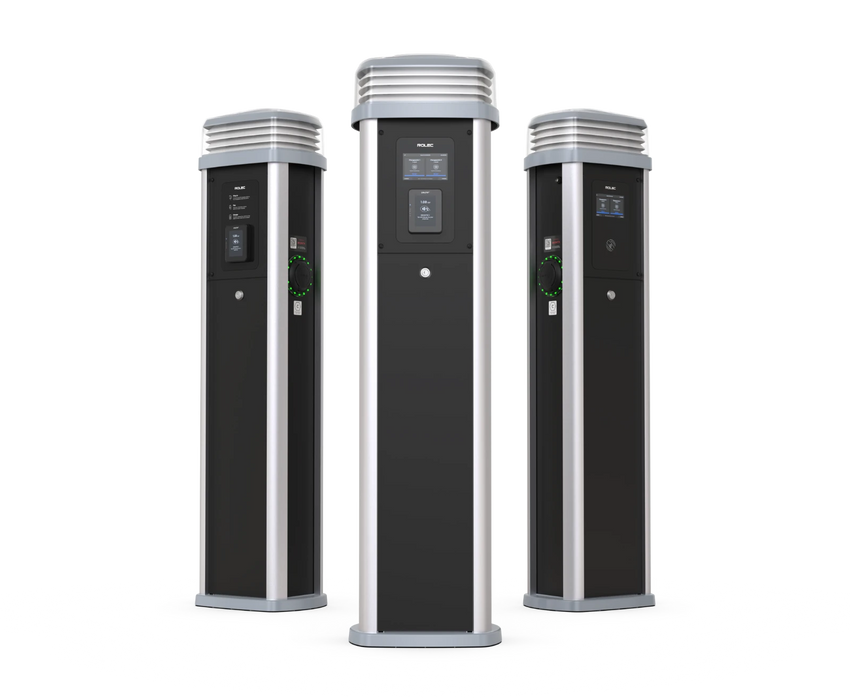

Rolec EV Quantum Contactless Payment EV Charger 7.4kW 2 x Type 2 Sockets Black with access door & LCD Screen

The Rolec Quantum 7.4kW Contactless EV Charger is a premium dual-output charging pedestal designed for high-traffic commercial and public environments. Crafted from durable aluminium with an IK10 impact rating, this charger combines robustness, cutting-edge technology, and sleek aesthetics for a dependable EV charging experience in any outdoor or exposed location.

Equipped with two Type 2 sockets delivering up to 7.4kW each, this unit supports plug & charge, RFID, mobile app, or contactless payment options (depending on configuration). The integrated LCD screen enhances user interaction, while LED amenity lighting ensures clear visibility of charging bays. Ideal for car parks, retail parks, and workplace charging stations, it is OCPP 1.6 compliant for seamless integration with any back-office system such as Fuuse, Monta, or ChargePlace Scotland.

Technical Specification

• Download Product Technical Data Sheet

• Installation Type: Free-standing pedestal

• Number of Charging Units: 2 (Dual Type 2 Sockets)

• Max. Power per Socket: 7.4kW

• Voltage Type: AC, Single Phase

• Max. Output Current (DC): 32A

• Control Options: Plug & Charge, App, RFID, Contactless Payment (model dependent)

• Connectivity: Compatible with multiple back-office platforms (OCPP 1.6)

• Display: 3.5" LCD backlit screen

• Lighting: Integrated LED amenity lighting

• Load Management: Supports Static & Dynamic Load Balancing

• Safety Features: PME fault detection (no earth rod required)

• Protection Rating: IP54

• Impact Resistance: IK10

• Housing Material: High-grade aluminium

• Dimensions (HxWxD): 1440mm x 375mm x 275mm

• Frequency: 50/60 Hz

• Colour: Black

• Suitable for: Commercial car parks, retail, hospitality, fleet & workplace EV charging
