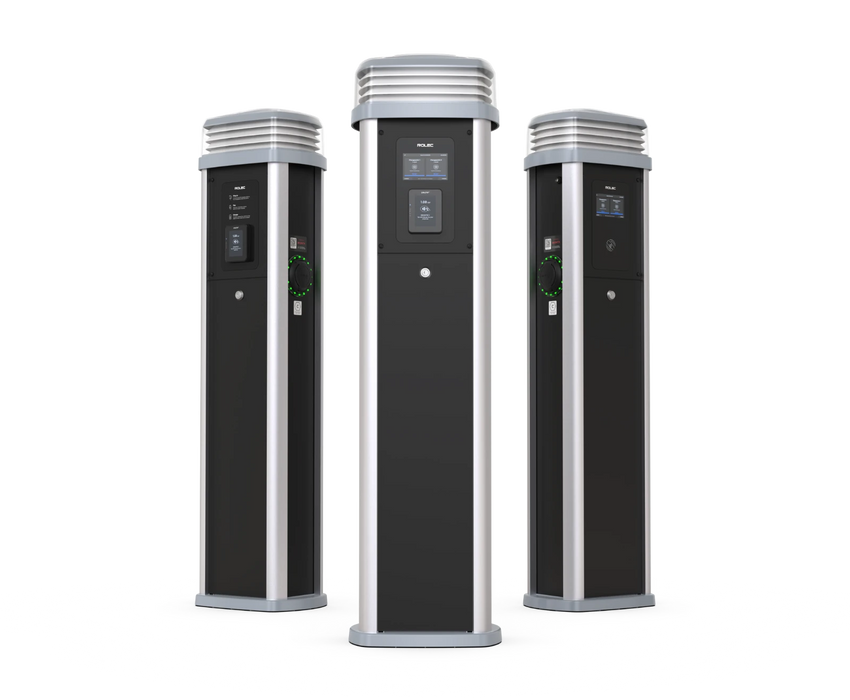

Rolec EV Quantum EV Charger 22kW 1 x Type 2 Sockets Black with access door & LCD Screen

The Rolec EV Quantum 22kW EV Charger is a premium-quality charging pedestal engineered for performance, durability, and visual appeal. Designed to thrive in both public and commercial environments, this single Type 2 socket charger offers fast and efficient three-phase charging for all compatible electric vehicles. The unit features a black aluminium housing with a robust IK10 impact rating, integrated LED amenity lighting for added visibility, and an intuitive LCD screen for real-time charging status.

With multiple charging access modes—including plug & charge, app-based control, RFID authentication, and contactless payment (model dependent)—this Quantum charger delivers a flexible, user-friendly experience. PME fault detection removes the need for an earth rod, while dynamic load balancing and static load management ensure safe, optimised energy usage. Fully OCPP 1.6 compliant, the charger seamlessly integrates with any back-office management system for complete operational control.

Technical Specification

• Download Product Technical Data Sheet

• Charging Output: Up to 22kW (Three-Phase)

• Number of Charging Units: 1 x Type 2 Socket

• Supply Voltage Type: AC

• Installation Type: 3-Phase Connection

• Max Output Current (DC): 32A

• Housing Material: Aluminium

• Impact Resistance: IK10 Rated

• Dimensions: 375 mm (W) x 1440 mm (H) x 275 mm (D)

• Frequency: 50/60 Hz

• PME Fault Detection: No Earth Rod Required

• OCPP 1.6 Compliant: Compatible with Any Back-Office System

• Charging Access: Plug & Charge, App, RFID, or Contactless Payment (model dependent)

• Integrated Features: LCD Display & LED Amenity Lighting
