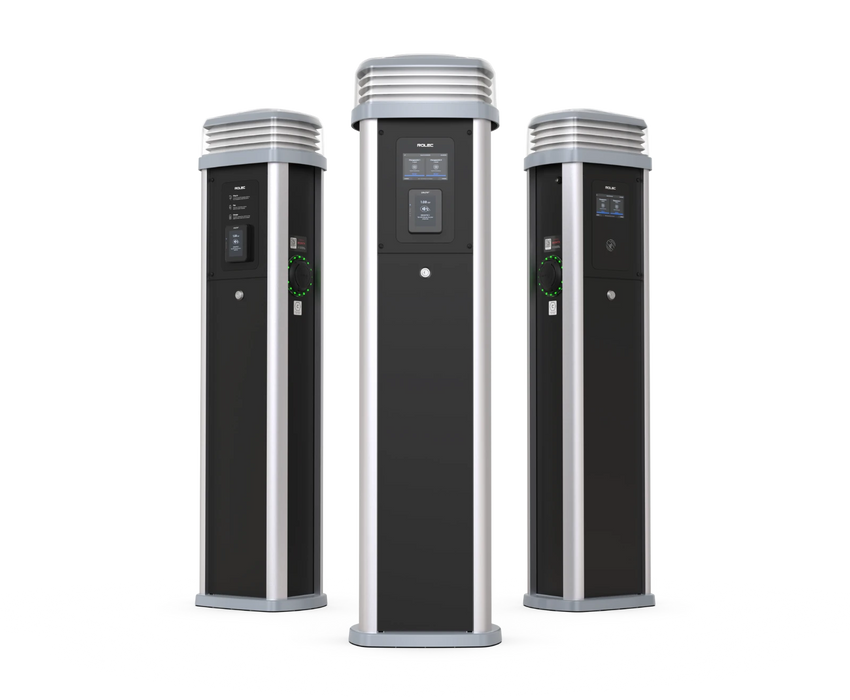

Rolec EV Quantum EV Charger 22kW 2 x Type 2 Sockets Black with access door & LCD Screen

The Rolec Quantum EV Charger 22kW is a premium dual-socket pedestal charger designed to meet the high standards of both commercial and public EV charging environments. Featuring two Type 2 charging outlets, this charger delivers up to 22kW per socket, allowing for simultaneous fast charging of two electric vehicles.

Engineered with a sleek, vandal-resistant aluminium housing and an LCD screen, the Quantum charger also includes integrated LED amenity lighting to enhance visibility in low-light areas. It supports multiple charging methods – plug & charge, RFID, mobile app, and contactless payment (model dependent), making it flexible for a wide range of user needs.

Fully OCPP 1.6 compliant, it integrates easily with leading charge point management systems such as Monta, Fuuse, or ChargePlace Scotland. With PME fault detection, there’s no need for earth rods, reducing installation time and cost.

Technical Specification

• Download Product Technical Data Sheet

• Charging Device Type: Electric vehicle pedestal charger

• Mounting: Floor-mounted pedestal

• Voltage Type: AC

• Installation Type: 3-phase

• Frequency: 50/60 Hz

• Number of Charging Units: 2

• Socket Type: Type 2

• Max. Output Power (per point): 22 kW

• Max. Output Current DC: 32 A

• Connectivity: Plug & charge, RFID, contactless payment (model dependent), mobile app

• OCPP Version: 1.6

• PME Fault Detection: Yes – no earth rod required

• Load Management: Supports dynamic & static load balancing

• Integrated Features: LED lighting, LCD display, access door

• Housing Material: Aluminium

• Colour: Black

• IP Rating: IP54

• IK Rating: IK10

• Height: 1440 mm

• Width: 375 mm

• Depth: 275 mm

Delivering high performance, smart integration, and rugged construction, the Rolec Quantum 22kW EV Charger is the ideal charging solution for car parks, business premises, and public spaces.
