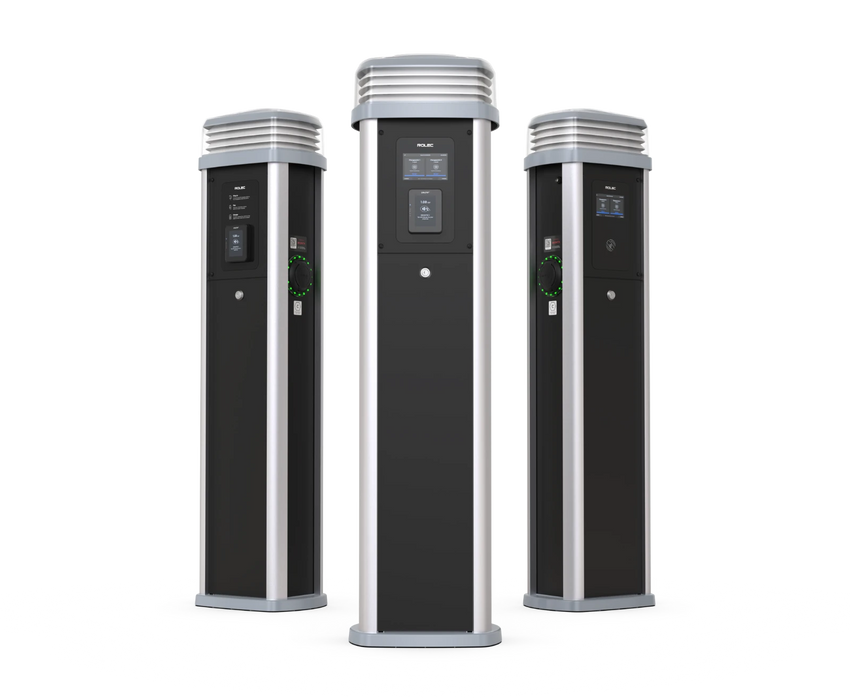

Rolec EV Quantum EV Charger 7.4kW 1 x Type 2 Sockets Black with access door & LCD Screen

The Rolec EV Quantum 7.4kW charger is a sleek and durable electric vehicle charging pedestal designed for reliable performance in all environments. Featuring a robust aluminium housing and an integrated LED amenity lighting system, this charger ensures enhanced visibility for charging bays and surrounding areas. With multiple charging control options—including plug & charge, app, contactless payment, or RFID (model dependent)—it offers a flexible and user-friendly experience for EV drivers.

Equipped with advanced safety features like PME fault detection (eliminating the need for an earth rod) and supporting dynamic load balancing, this single-phase charger maximizes efficiency and reduces installation complexity. The Rolec Quantum charger is fully OCPP 1.6 compliant, allowing seamless integration with any back-office management system.

Technical Specification

• Download Product Technical Data Sheet

• Charging Output: Up to 7.4 kW

• Number of Charging Units: 1

• Socket Type: Type 2

• Voltage Type: AC, Single Phase

• Housing Material: Aluminium

• Installation Side Connection Model: Single phase

• Impact Resistance: IK10 rated

• Frequency: 50/60 Hz

• Dimensions: Width 375 mm x Height 1440 mm x Depth 275 mm

• Max Output Current (DC): 32 A

• Key Features:

  • Plug & charge, app, contactless payment, or RFID controlled charging (model dependent)

  • PME fault detection (no earth rod required)

  • Supports dynamic load balancing & static load management

  • OCPP 1.6 compliant for easy back-office integration

  • Integrated LED amenity lighting for enhanced visibility
