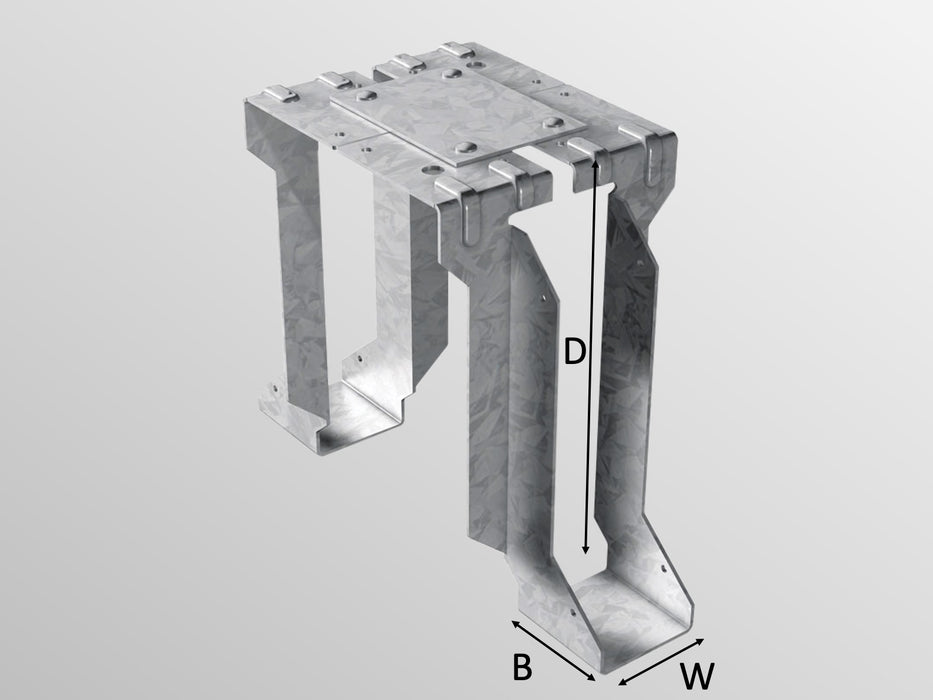

SMH Joist Hanger Type D (STJH)

The SMH Joist Hanger Type D (STJH) is a heavy-duty straddle hanger specifically designed for applications where timber joists are positioned directly opposite each other on either side of a wall or beam. Ideal for load-bearing masonry structures, this hanger is manufactured from 2.0mm thick pre-galvanised steel to BS EN 10346:2009, S280 standards. As standard, it is made to suit 100mm blockwork, with other widths available on request. The wide top flange enhances load capacity, while the 75mm bearing surface and pre-punched side gussets ensure secure, efficient installation. STJH provides a reliable solution for symmetrical joist alignment in structural masonry.

Technical Specification

• Data Sheet
• Material: 2.0mm pre-galvanised steel (BS EN 10346:2009, S280)
• Design: Straddle type hanger for joists positioned directly opposite each other
• Standard Width: 100mm blockwork (custom widths available on request)
• Top Flange: Wide flange for increased load distribution
• Bearing Surface: 75mm for strong support
• Fixing Method: Pre-punched side gussets for 30 x 3.75mm Sheradised square twist nails
• Joist Compatibility: All hangers 150mm deep and above are manufactured 10mm undersized for regularised timber
• Application: Ideal for use in load-bearing masonry with a minimum strength of 3.5N/mm²
• Durability: High corrosion resistance for long-lasting performance in structural applications
