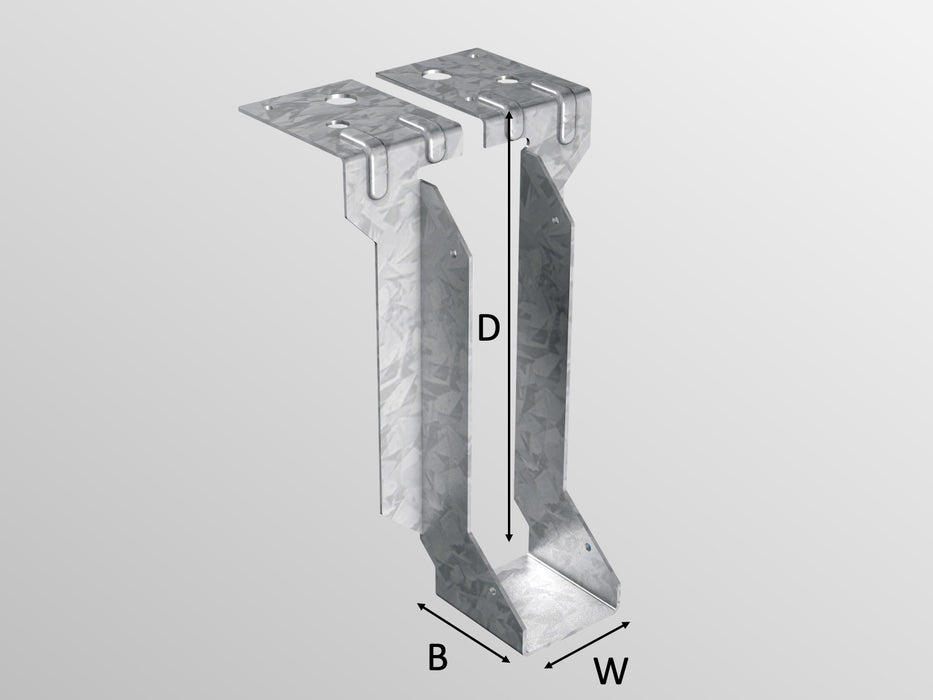

SMH Joist Hanger Type S (SJH)

The SMH Joist Hanger Type S (SJH) is a heavy-duty, high-performance hanger specifically engineered for building into brickwork or blockwork. Manufactured from 2.0mm thick pre-galvanised steel to BS EN 10346:2009, S280 standards, this hanger provides superior strength and durability. Featuring a wide top flange for increased load capacity and a 75mm bearing surface, it ensures a secure connection between masonry and timber joists. Ideal for use with regularised timber, hangers 150mm deep and above are supplied 10mm undersized to maintain accurate joist levels. This reliable, cost-effective solution is suitable for a wide range of construction applications.

Technical Specification

• Data Sheet
• Material: 2.0mm pre-galvanised steel (BS EN 10346:2009, S280)
• Design: Wide top flange for enhanced load distribution
• Installation Surface: Designed for use with masonry of 3.5N/mm² crushing strength and above
• Bearing Surface: 75mm
• Fixing Method: Pre-punched side gussets for 30 x 3.75mm Sheradised square twist nails
• Joist Compatibility: All hangers 150mm deep and above are manufactured 10mm undersized for regularised timber
• Application: Suitable for embedding in brickwork and blockwork in new build or refurbishment projects
• Durability: High corrosion resistance due to galvanised steel finish
