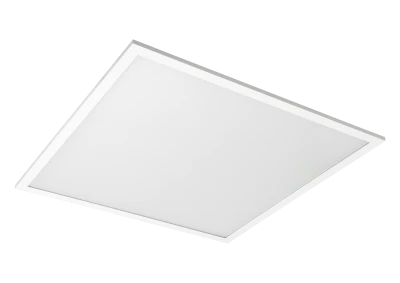

Sterling UGR<19 LED Panel 600x600 TPA Rated HO 840

The Sterling UGR<19 LED Panel 600x600mm HO 840 TP(a) Rated is a high-output, IP44-rated LED lighting solution designed to deliver superior visual comfort and performance in commercial and professional spaces. Featuring a micro-prismatic polycarbonate diffuser with UGR<19 compliance, it ensures reduced glare and optimal lighting quality for offices, meeting rooms, and educational environments.

This 600x600mm slim LED panel offers outstanding energy efficiency and light uniformity. Powered by an ENEC-approved, flicker-free driver, the Sterling panel is available in 19W, 29W, and 37W variants with colour temperature options of 4000K or 5000K. It supports recessed, surface, or suspended installation, and is compatible with plug-and-play emergency packs (standard or self-test, sold separately).

For added flexibility, dimming versions are available with DALI, switch dim, and corridor function control options. The panel is TP(a) rated for fire safety and designed to meet the highest standards for professional lighting installations.

Technical Specification

• Download Product Technical Data Sheet

• Panel Size: 600mm x 600mm

• Wattage Options: 19W / 29W / 37W

• Colour Temperature Options: 4000K or 5000K

• Diffuser: Micro-Prismatic, UGR<19, TP(a) Rated

• Light Distribution: Side-lit

• IP Rating: IP44

• Voltage: 220–240V

• Conductor Cross Section: 2.5 mm²

• Driver: ENEC Approved Flicker-Free

• Emergency Options: Compatible with STD/Self-Test Plug & Play Packs (sold separately)

• Dimming Options: DALI, Switch Dim, Corridor Function

• Mounting: Recessed (lay-in/pull-up), Surface, Suspended

• Certifications: UKCA, CE, Certificate of Conformity

Ideal For: Offices, Classrooms, Corridors, Retail Spaces, Healthcare, and Commercial Buildings
