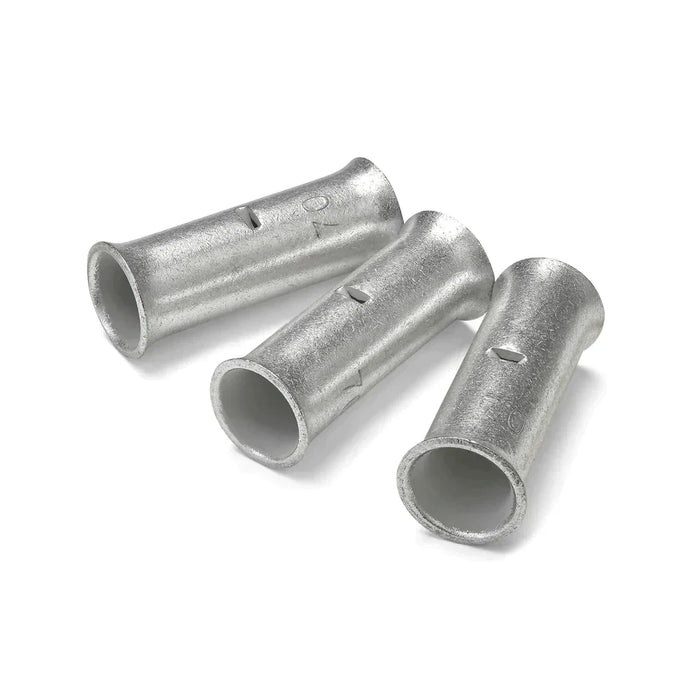

Tubular Copper Splice Connectors for 400mm² - 1000mm² Cable Size - Pack of 1
Original price
£8.19
-
Original price
£48.32
Original price
£8.19
£8.19
-
£48.32
Current price
£8.19
excl. VAT
💳 0% APR Finance Available*
Our Tubular Copper Splice Connectors for 400mm²–1000mm² cable sizes provide a robust, high-conductivity solution for joining large power cables in demanding electrical installations. Manufactured from high-quality C106 seamless copper tube and finished with electro-tin plating, these uninsulated butt splice connectors offer exceptional durability, corrosion resistance, and reliable current transfer. Supplied in a pack of 1, they are ideal for heavy-duty industrial, commercial, and utility applications where maximum performance and long-term stability are essential. Technical datasheets are available upon request.
Technical Specification
- Terminal Type: Uninsulated Butt Splice
- Wire Size: 400mm² – 1000mm²
- Material: C106 Seamless Copper Tube with Electro Tin Plating
- Maximum Operating Temperature: 150°C
- Maximum Electrical Rating: 3.3kV Max
- Compliance: RoHS Compliant, REACH Compliant
- Lengths by Cable Size:
- 400mm²: 110mm
- 500mm²: 118mm
- 630mm²: 127mm
- 800mm²: 150mm
- 1000mm²: 150mm
