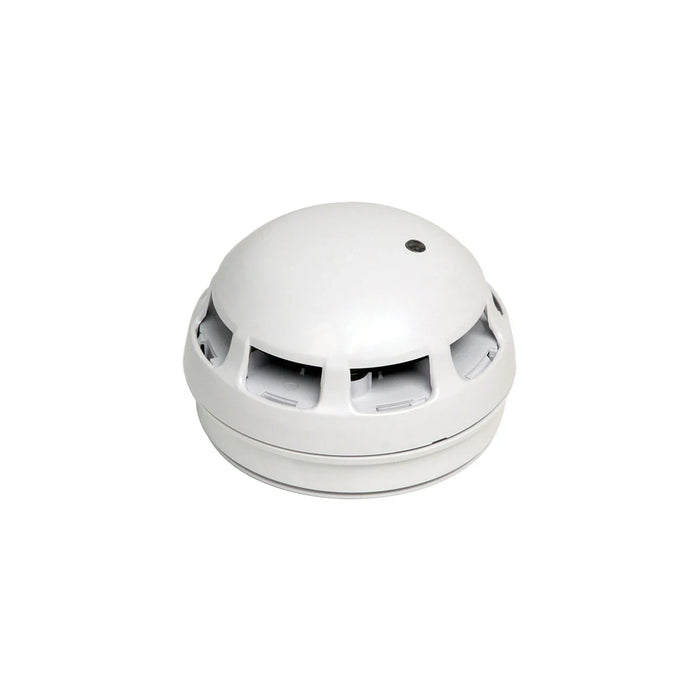

Twinflex ASD Smoke and Heat Sensor Complete With Base & Sounder

The Twinflex ASD Smoke and Heat Sensor is an advanced addressable detector designed to deliver high-performance fire detection with the convenience of an integrated sounder and base. Combining a photoelectric smoke sensor and a thermistor heat sensor, the unit can be configured to detect smoke, heat, or both—making it ideal for a wide variety of environments. With seven programmable sounder tones and adjustable volume levels (65dB(A), 80dB(A), or 85dB(A)), this device also eliminates the need for separate sounders, reducing installation time and system complexity.

Built-in short circuit isolators protect the loop in the event of a fault, while intelligent communication allows direct interaction with Fike SITA200plus, Duonet, and Quadnet panels for faster, more reliable response. The unit self-calibrates every six hours to maintain optimal sensitivity, and a clear LED status indicator provides real-time visibility of the device condition.

Technical Specification

• Combined photoelectric smoke and thermistor heat detection
• Configurable to 3 smoke modes, 3 heat modes, or a combined mode
• Integrated sounder with 7 selectable tones and adjustable volume: 65, 80, or 85dB(A)
• Supplied complete with base for surface mounting
• Self-calibrates every 6 hours for reliable performance
• LED status indication:
– 400ms flash = Activated
– 5s flash = Fault
– 20s flash = Normal
• Built-in short circuit isolators for enhanced system protection
• Voltage range: 24V to 42V DC
• Mounting method: Surface mounting
• Primary power supply: Mains power
• Compatible with Fike’s SITA200plus, Duonet, and Quadnet control panels

The Twinflex ASD Smoke and Heat Detector with base and sounder is a powerful, intelligent solution for commercial and industrial fire alarm systems—providing multi-criteria detection, sounder functionality, and seamless integration in one compact unit.
