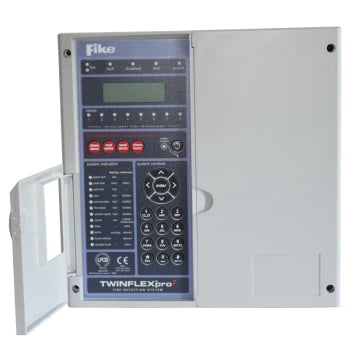

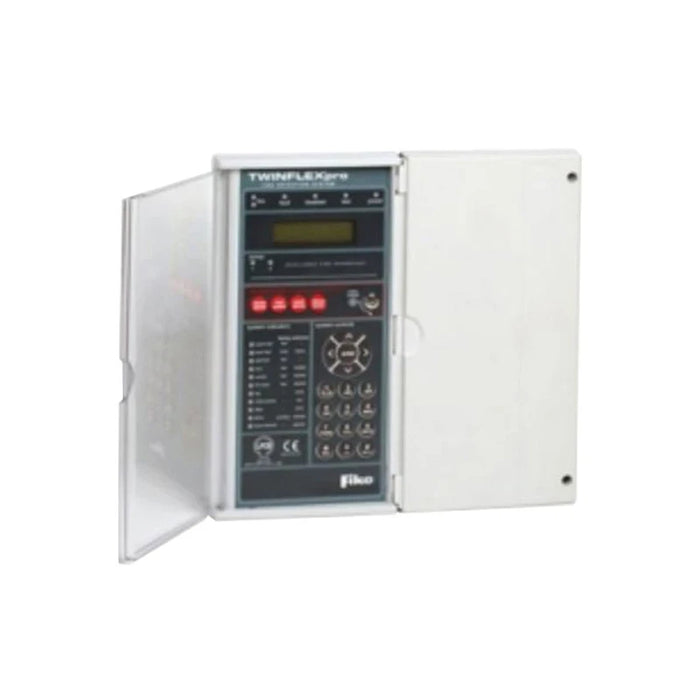

Twinflex Pro 2 Zone Panel

The Twinflex Pro 2 Zone Panel is an advanced, intelligent 2-wire fire alarm control panel designed to simplify installation while delivering high-performance fire detection. Ideal for smaller premises such as offices, shops, or small commercial buildings, this panel supports up to 32 Twinflex devices per circuit, allowing smoke detectors, heat detectors, call points, and sounders to be connected on the same pair of wires. This drastically reduces cabling, labour, and installation costs compared to traditional systems.

The Twinflex Pro is capable of automatically identifying the type of device triggering the alarm—be it smoke, heat, or manual call point—and includes full fault monitoring, programmable inputs/outputs, and a reliable integrated power supply. For streamlined, cost-effective fire protection without compromising performance, the Twinflex Pro is the ideal choice.

Technical Specifications

• Download Product Technical Data Sheet

• Panel Type & Configuration:

  • Analogue non-addressable 2-wire fire alarm system

  • 2-zone panel, expandable with 4 and 8 zone variants available

  • Supports up to 32 Twinflex devices per circuit

• Device Compatibility & Installation:

  • Allows all devices (detectors, call points, sounders) to be installed on the same cable

  • Compatible with a range of Twinflex detectors

  • Reduces installation time and cabling costs

• Detection & Fault Monitoring:

  • Recognises and distinguishes between smoke, heat, and manual call point alarms

  • Zone monitoring includes:

    • Detector head removal

    • Device fault

    • End-of-line fault

    • Open or short circuit fault

• Inputs & Outputs:

  • 2 monitored outputs (configurable as conventional sounder circuits)

  • Volt-free common fire relay and common fault relay

  • 2 multifunction latching/non-latching inputs

  • 1 programmable monitored input (e.g. Class-Change or Remote Fire)

• Power Supply & Backup:

  • Built-in integral power supply unit

  • Requires 2 x 12V 3.2Ah batteries (not included)

  • Provides up to 72 hours of standby power

The Twinflex Pro 2 Zone Panel delivers intelligent fire detection in a cost-effective, easy-to-install package—perfect for small buildings that require reliable, scalable fire protection.
